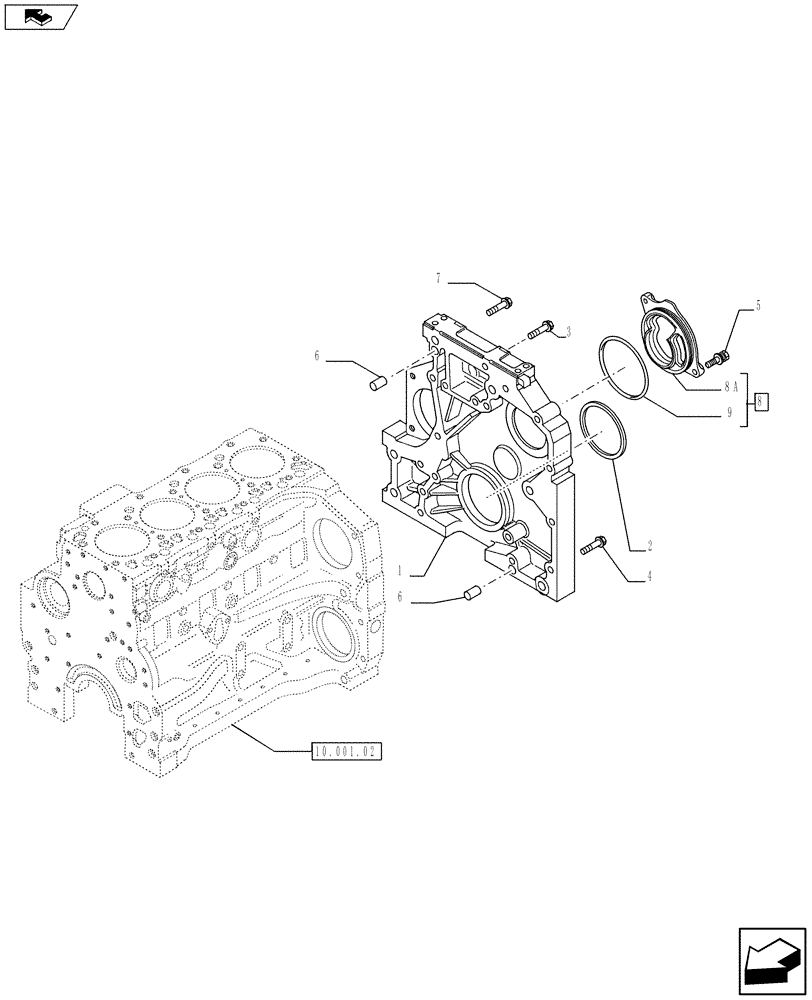

Запчасти Case IH F4CE9484L J602 (10.102.02) - CRANKCASE COVERS (2855168) (10) - ENGINE

1

2855169

HOUSING

1шт.

2

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

3

4899145

BOLT,Flng, M12 x 1.75 x 100mm

2шт.

4

4899385

FLANGE BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

1шт.

4

4891250

BOLT,Flng, M12 x 1.75 x 78mm, Cl 10.9

14шт.

5

2852611

SCREW,Shearing

1шт.

5

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

1шт.

6

4894532

DOWEL,M18 x 10 L

2шт.

7

4899759

FLANGE BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

2шт.

8

2853694

COVER ASSY

ASSY Contains Ref.8A, 9

1шт.

8a

NSS

NOT SOLD SEPARAT

1шт.

9

2853695

O-RING

1шт.
