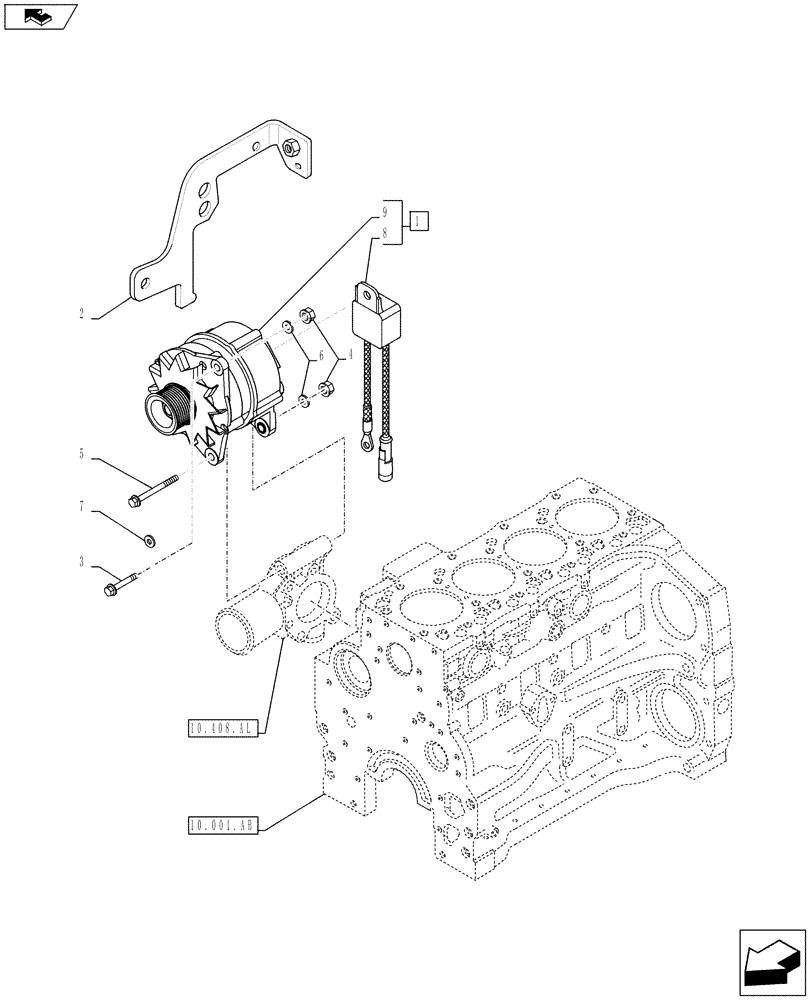

Запчасти Case IH F4CE9484L J600 (55.301.AB) - ALTERNATOR (55) - ELECTRICAL SYSTEMS

1

87311822

ALTERNATOR,120A, W/ Pulley

ASSY, Incl 8, 9

1шт.

2

87599631

BRACKET

1шт.

3

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

1шт.

4

12164714

NUT,M10 x 1.25, Cl 8

2шт.

5

15972421

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

1шт.

6

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

2шт.

7

12626224

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

8

87537543

CABLE

1шт.

9

NSS

NOT SOLD SEPARAT

Alternator, Incl in 1

1шт.
