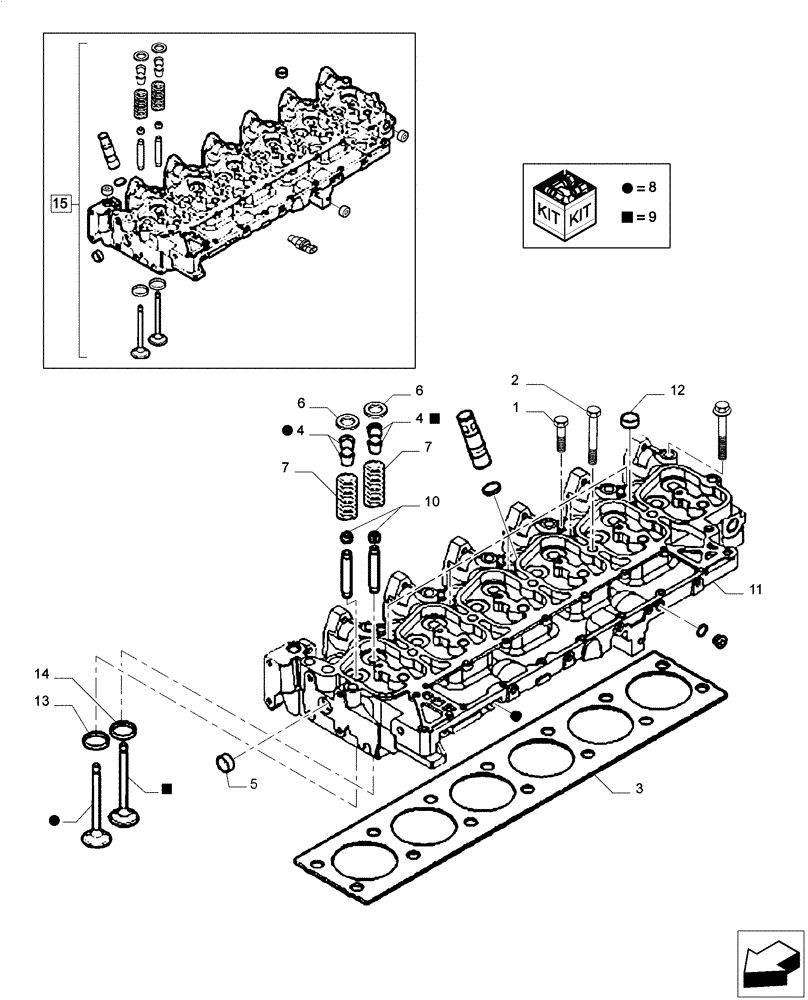

Запчасти Case IH F4CE0654B B601 (10.101.AA) - CYLINDER HEAD (10) - ENGINE

1

4892861

CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73

6шт.

2

4892859

BOLT,Flng, M12 x 1.75 x 143mm

14шт.

3

2830922

CYLINDER HEAD GASKET,1.4mm Thk

1шт.

3

2830923

CYLINDER HEAD GASKET,1.15mm Thk

1шт.

4

4895183

COLLET

24шт.

5

4895085

EXPANSION PLUG,25.74mm

1шт.

6

4895184

RETAINER,34mm OD, 10.63mm ID, 14.5mm L

12шт.

7

2856804

SPRING

12шт.

8

71104370

STD INLET VALVE

Incl 4

1шт.

9

71104369

STD EXHAUST VALVE

Incl 4

1шт.

10

4895347

SEAL

12шт.

11

NSS

NOT SOLD SEPARAT

Cylinder Head Incl in 15

1шт.

12

4895179

EXPANSION PLUG,M20.93

3шт.

13

4897178

VALVE SEAT,36mm ID x 43mm OD x 6.7mm L

6шт.

14

4897179

VALVE SEAT,38 mmID x 47mm OD x 6.9mm L

6шт.

15

71104375

CYLINDER HEAD

Incl 1 - 14

1шт.
