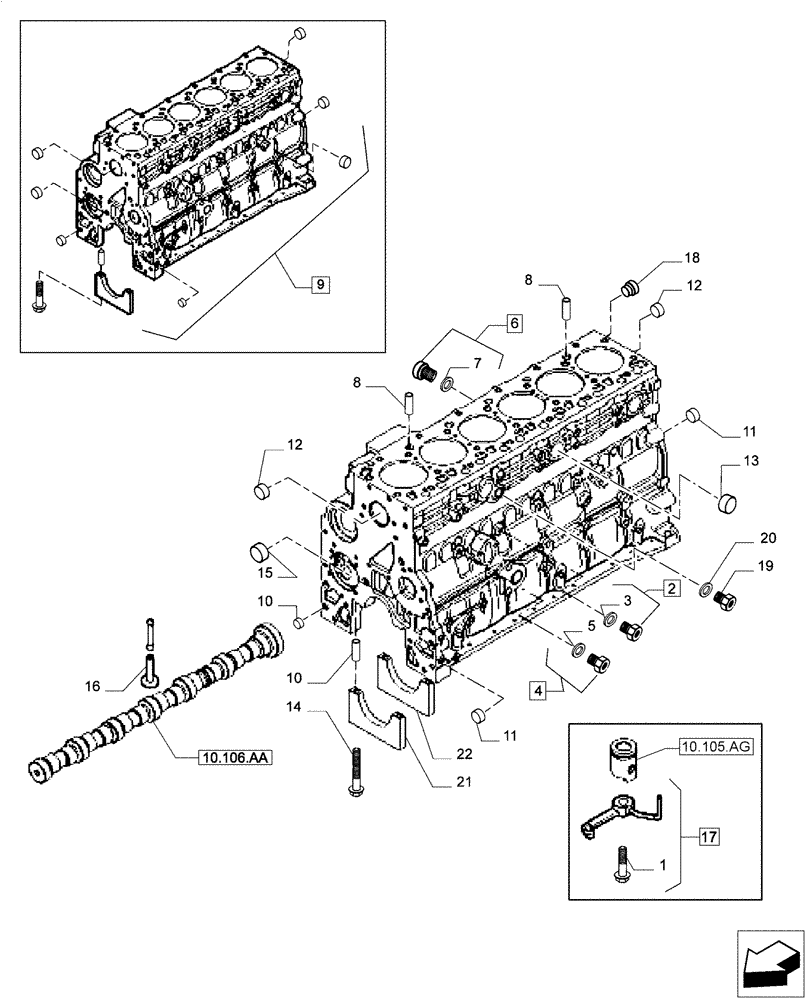

Запчасти Case IH F4CE0654B B601 (10.001.AB) - CRANKCASE (10) - ENGINE

1

4894218

SCREW,Special, M8 x 20

1шт.

2

4895605

HEX SOCKET PLUG,M14 x 1.5

Incl 3

1шт.

3

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

4

4899009

PLUG,M10 x1

Incl 5

3шт.

5

4899072

O-RING,1.6mm Thk x 8.1mm ID

3шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

Incl 7

3шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

3шт.

8

4895049

DOWEL,M16.05 x 10

2шт.

9

2831313

CYLINDER BLOCK,6 Cylinders

Incl 1 - 8, 10 - 22

1шт.

10

4899026

DOWEL,M18 x 10

2шт.

11

4895039

EXPANSION PLUG,M17.73

2шт.

12

4895038

EXPANSION PLUG,M58.06

6шт.

13

4895228

EXPANSION PLUG,35.23mm x 7.94mm

3шт.

14

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

14шт.

15

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

16

J931623

TAPPET

12шт.

17

2852202

NOZZLE, PISTON COOLI

Incl 1

6шт.

18

2831364

LUBE OIL NOZZLE

1шт.

19

4895623

HEX SOCKET PLUG,M16 x 1.5

1шт.

20

4895623

HEX SOCKET PLUG,M16 x 1.5

1шт.

21

NSS

NOT SOLD SEPARAT

Main bearings Incl in 9

6шт.

22

NSS

NOT SOLD SEPARAT

Main bearings Incl in 9

1шт.
