Запчасти Case IH F4CE0354C D601 (0432.039) - REAR C.CASE COVER [FROM # 272517]

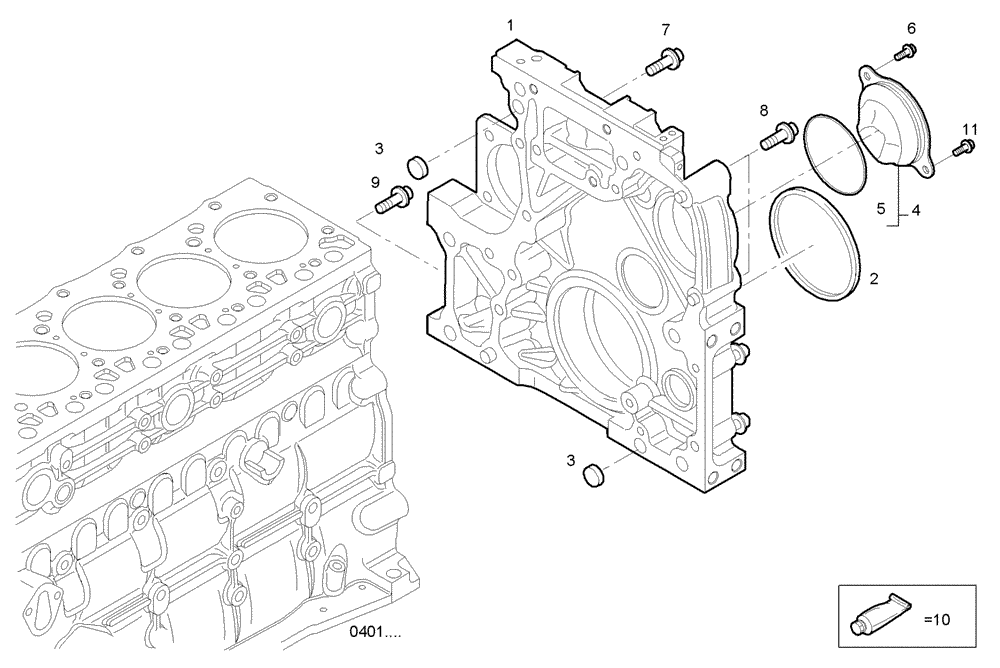

Схема запчастей Case IH F4CE0354C D601 - (0432.039) - REAR C.CASE COVER [FROM # 272517]

Артикул

Название

Примечание

Количество

1

504170029

TIMINGGEAR HOUSIN

HOUSING

1шт.

2

4890833

OIL SEAL,M130 x 155 x 12.5/16

SHAFT SEAL

1шт.

3

4894532

DOWEL,M18 x 10 L

DOWEL PIN

2шт.

4

504110651

HOUSING COVER, ASSY

COVER

1шт.

5

2853695

O-RING

O-RING

1шт.

6

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

HEXAGON BOLT, M8X1.25X20

2шт.

7

4899385

FLANGE BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

HEXAGON BOLT, M16X1,5

3шт.

8

4891250

BOLT,Flng, M12 x 1.75 x 78mm, Cl 10.9

HEXAGON BOLT, M12X1,75

14шт.

9

4899145

BOLT,Flng, M12 x 1.75 x 100mm

HEXAGON BOLT

2шт.

10

2992504

LOCTITE

ADHESIVE/STICKER, LOCTITE

1шт.

11

4899759

FLANGE BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

HEXAGON BOLT

2шт.

Выбрано товаров: 11
