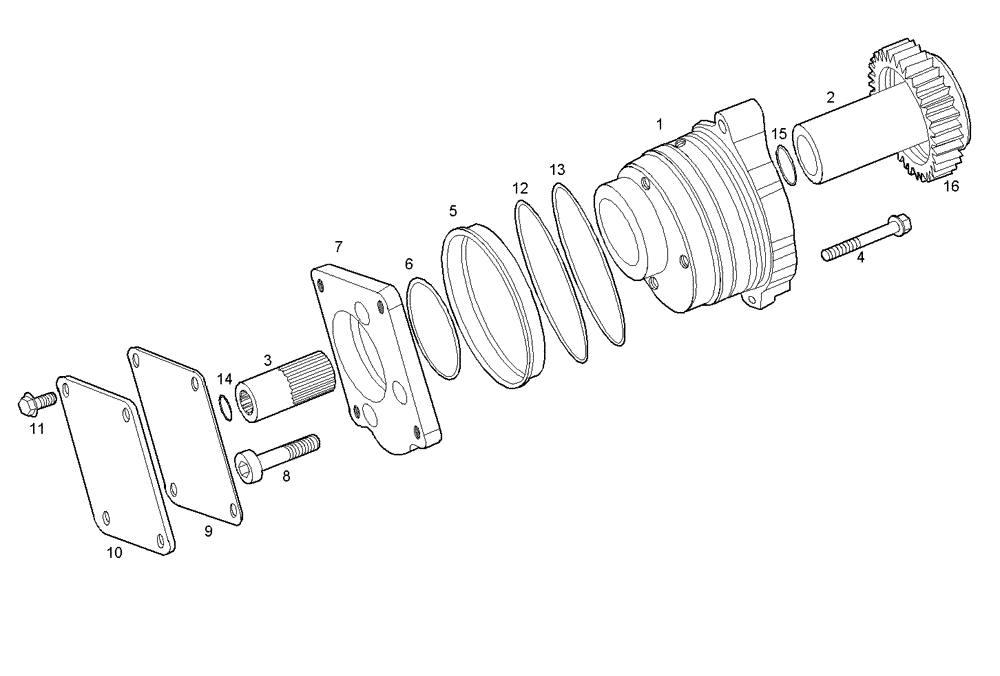

Запчасти Case IH F4CE0354C D601 (3500.048) - POWER TAKE OFF [UP TO # 181270]

1

504086072

SUPPORT

POWER TAKE OFF

1шт.

2

504078702

DRIVE SHAFT

INJECT.PUMP SPIND

1шт.

3

504078857

SHAFT

POWER TAKE OFF SHAFT

1шт.

4

4897348

BOLT,Flng, M8 x 1.25 x 40mm, Cl 10.9

HEXAGON BOLT

3шт.

5

2853836

SPACER,102.5mm ID x 107.5mm OD x 13mm L

SPACER RING

1шт.

6

2853837

O-RING,0.07" Thk x 2.55" ID

O-RING

1шт.

7

2853838

ADAPTER

SPACING BAR

1шт.

8

2853839

HEX SOC SCREW

CYLIND-HEAD SCREW, M10X50 MM

3шт.

9

2853840

GASKET,0.8mm Thk

FLAT ENGINE GASKET

1шт.

10

2853841

COVER

PTO COVER

1шт.

11

4896884

BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9

HEXAGON BOLT

4шт.

12

17291381

O-RING,0.139" Thk x 3.859" ID, -241

O-RING, dia=98,02 MM SP=3,53 MM

1шт.

13

14466081

O-RING,101.19mm ID x 3.53mm Width

O-RING, dia=101,19 MM SP=3,53

1шт.

14

17084476

CIRCLIP

CIRCLIP, dia=14 MM

1шт.

15

17084976

LOCKING RING

CIRCLIP, dia=24 MM

1шт.

16

504078464

PTO GEAR

1шт.
