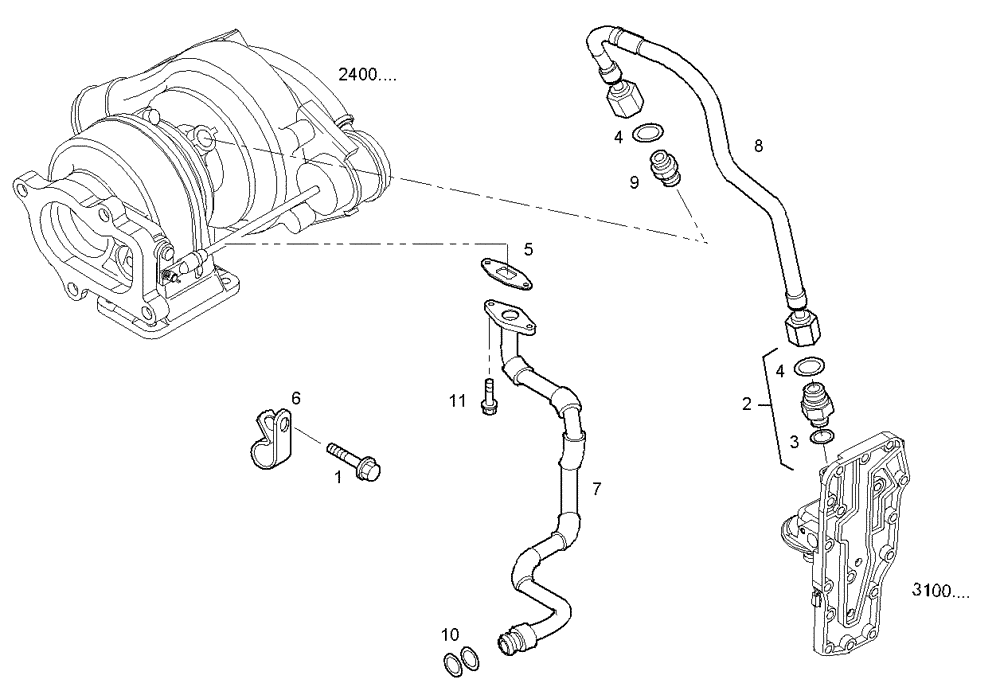

Запчасти Case IH F4CE0354C D601 (3010.206) - LUBE OIL LINES

1

4895591

HEXAGON BOLT

SCREW

1шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

THREADED UNION, ASSY

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

O-RING

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

O-RING

2шт.

5

4899467

GASKET

FLAT ENGINE GASKET

1шт.

6

4899519

CLAMP,M16, M6 Bolt

BRACKET

1шт.

7

504096080

OIL LINE

1шт.

8

2852195

HYDRAULIC HOSE,6.4mm ID x 461mm L

OIL LINE, INLET

1шт.

9

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

PIPE SOCKET

1шт.

10

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

O-RING, DIA 17,12 SP 2,62

2шт.

11

4899110

SCREW,Hex Flg, M6 x 1 x 20

HEXAGON BOLT

2шт.
