Запчасти Case IH F4CE0304B D601 (0432.004) - REAR C.CASE COVER [UP TO # 272516]

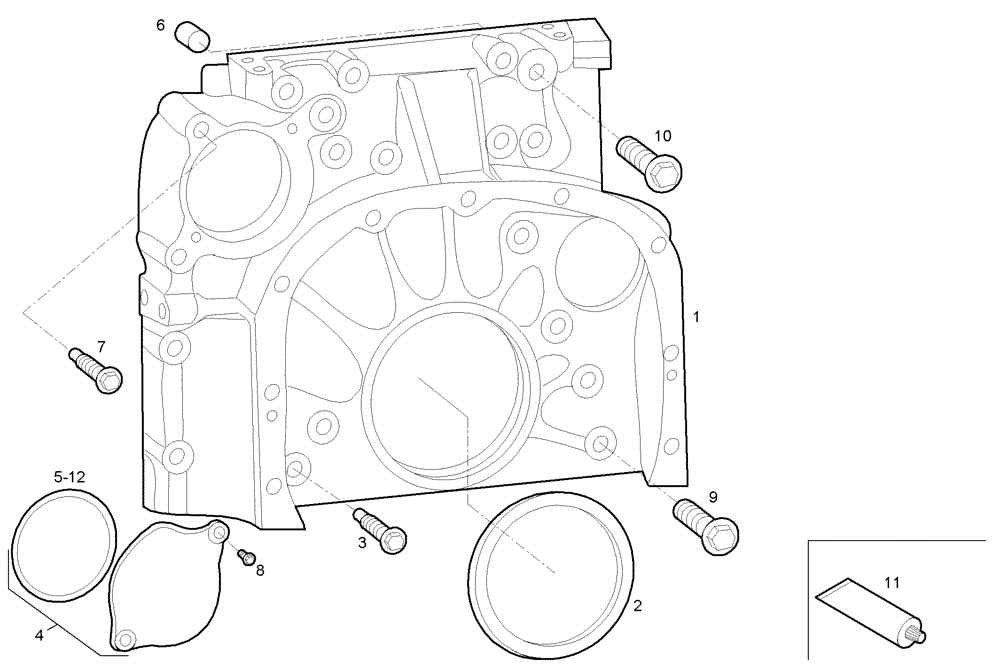

Схема запчастей Case IH F4CE0304B D601 - (0432.004) - REAR C.CASE COVER [UP TO # 272516]

Артикул

Название

Примечание

Количество

1

2830422

COVER

TIMINGGEAR HOUSIN

1шт.

2

4890833

OIL SEAL,M130 x 155 x 12.5/16

SHAFT SEAL

1шт.

3

4891250

BOLT,Flng, M12 x 1.75 x 78mm, Cl 10.9

HEXAGON BOLT, M12X1,75

14шт.

4

4894490

COVER

COVER, ASSY

1шт.

5

4899017

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

O-RING, UP TO # 170902

1шт.

6

4894532

DOWEL,M18 x 10 L

DOWEL PIN

2шт.

7

4899145

BOLT,Flng, M12 x 1.75 x 100mm

HEXAGON BOLT

2шт.

8

4899146

SCREW,Hex Flg, M8 x 1.25 x 20

HEXAGON BOLT

2шт.

9

4899385

FLANGE BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

HEXAGON BOLT, M16X1,5

3шт.

10

4899759

FLANGE BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

HEXAGON BOLT

2шт.

11

2992504

LOCTITE

ADHESIVE/STICKER, LOCTITE

1шт.

12

2853695

O-RING

O-RING, FROM # 170903

1шт.

Выбрано товаров: 12
