Запчасти Case IH F4CE0304B D601 (3100.122) - OIL - WATER HEAT EXCHANGER

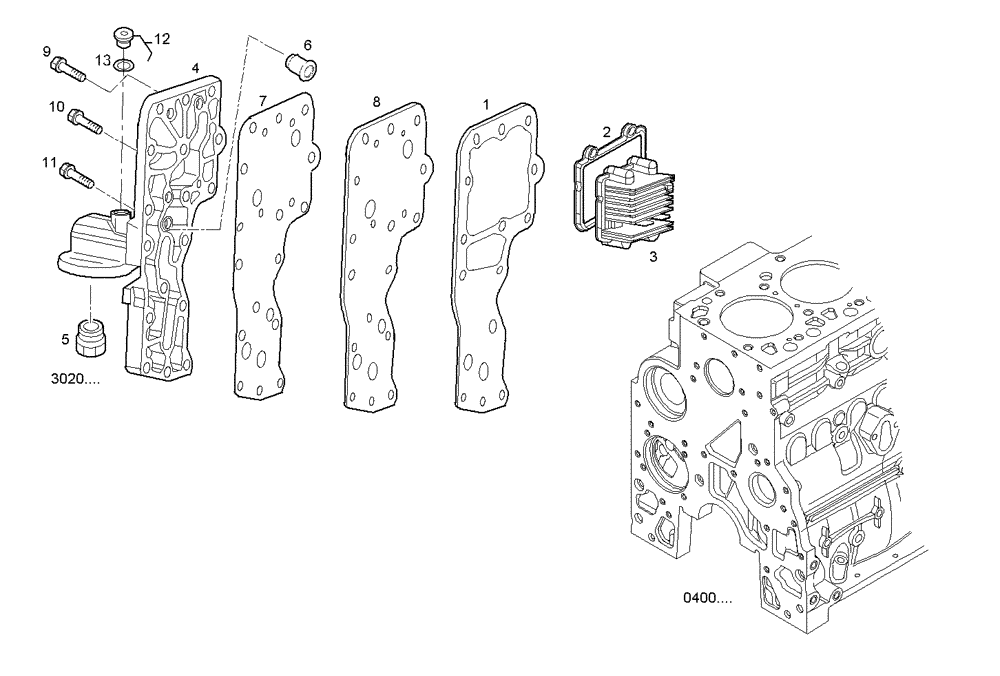

Схема запчастей Case IH F4CE0304B D601 - (3100.122) - OIL - WATER HEAT EXCHANGER

Артикул

Название

Примечание

Количество

1

504066295

FLAT ENGINE GASKET

GASKET,GUARNIZIONE

1шт.

2

504066292

FLAT ENGINE GASKET

GASKET

1шт.

3

504066293

OIL COOLER

CORE-OIL COOLER,RADIATORE OLIO

1шт.

4

504066288

OIL FILTER SUPPORT

1шт.

5

4893391

ADAPTER,M24 x 2 x M27 x 2

THREADED UNION

1шт.

6

J936365

VALVE PRESSURE RELIE

VALVE

1шт.

7

2853000

GASKET

FLAT ENGINE GASKET

1шт.

8

2853001

SPACER

SPACING BAR

1шт.

9

4899147

SCREW,Hex, M6 x 1 x 45mm

HEXAGON BOLT

4шт.

10

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

HEXAGON BOLT, M8X35 MM

13шт.

11

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

HEXAGON BOLT, M8X30 MM

3шт.

12

4897330

HEX SOCKET PLUG,M12 x 1.5

PLUG, ASSY M12X1,5

1шт.

13

4895610

O-RING,2.2mm Thk x 9.3mm ID

O-RING

1шт.

Выбрано товаров: 13
