Запчасти Case IH F4CE0304B D601 (0810.126) - CONNECTING ROD

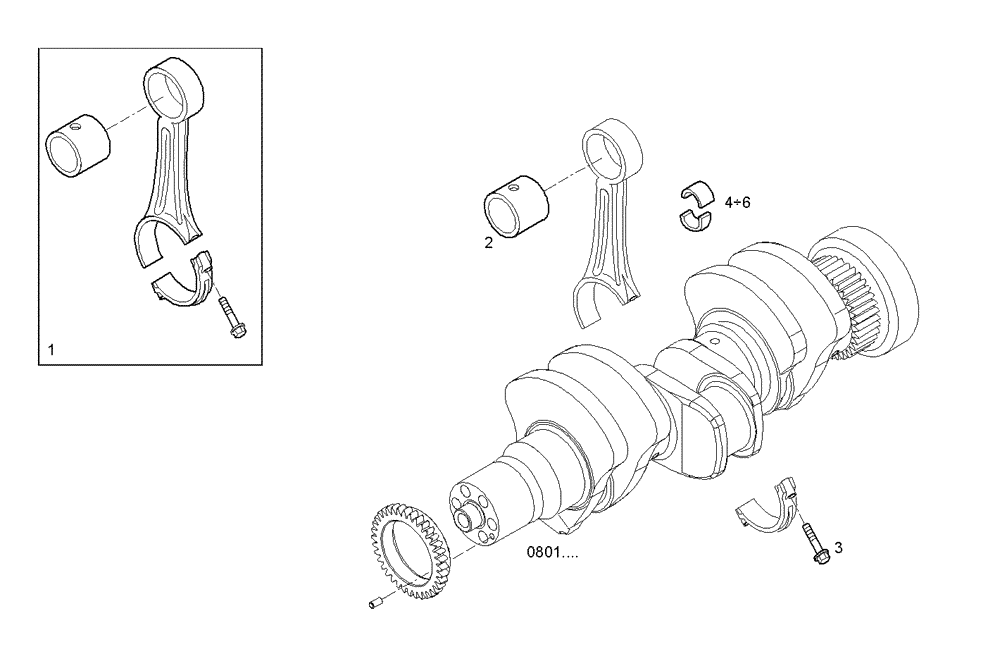

Схема запчастей Case IH F4CE0304B D601 - (0810.126) - CONNECTING ROD

Артикул

Название

Примечание

Количество

0

2992153

CAP

MAIN BEARING STD., THRUST

1шт.

0

2992154

SET OF THRUST WASHER

MAIN BEARING-0,250, THRUST

1шт.

0

2992155

SET OF THRUST WASHER

MAIN BEARING-0,500, THRUST

1шт.

1

2831298

CONNECTING ROD

CONN.ROD ASSY., ASSY

3шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

BIG-END BUSH

3шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

CYLIND-HEAD SCREW

6шт.

4

8093882

BEARING SET

CON.ROD BEAR STD.

3шт.

5

8094960

BEARING SET,(-0.250)

CON.ROD BEAR-0,250

3шт.

6

8094961

BEARING SET,(-0.500)

CON.ROD BEAR-0,500

3шт.

Выбрано товаров: 9
