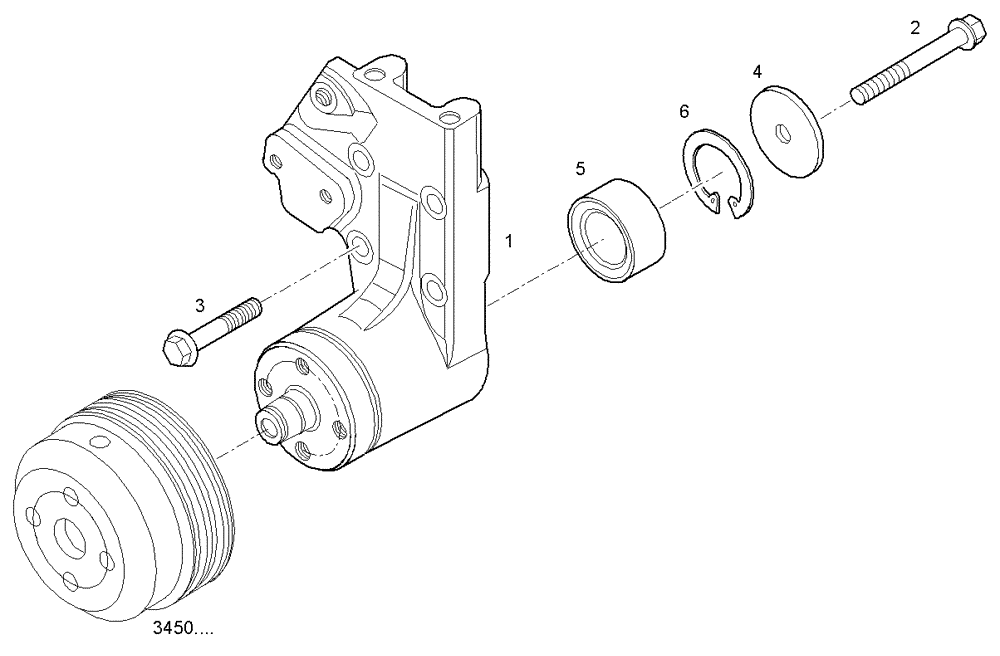

Запчасти Case IH F4CE0304A D600 (3490.011) - FAN SUPPORT

1

2854422

HUB

SUPPORT

1шт.

2

2852172

BOLT,Flng, M10 x 1.5 x 70mm

HEXAGON BOLT, M10X70 MM

1шт.

3

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

HEXAGON BOLT

3шт.

4

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

WASHER

1шт.

5

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

BALL BEARING

1шт.

6

32324

SNAP RING,2.44", Int, #244

SPRING LOCKWASHER

1шт.
