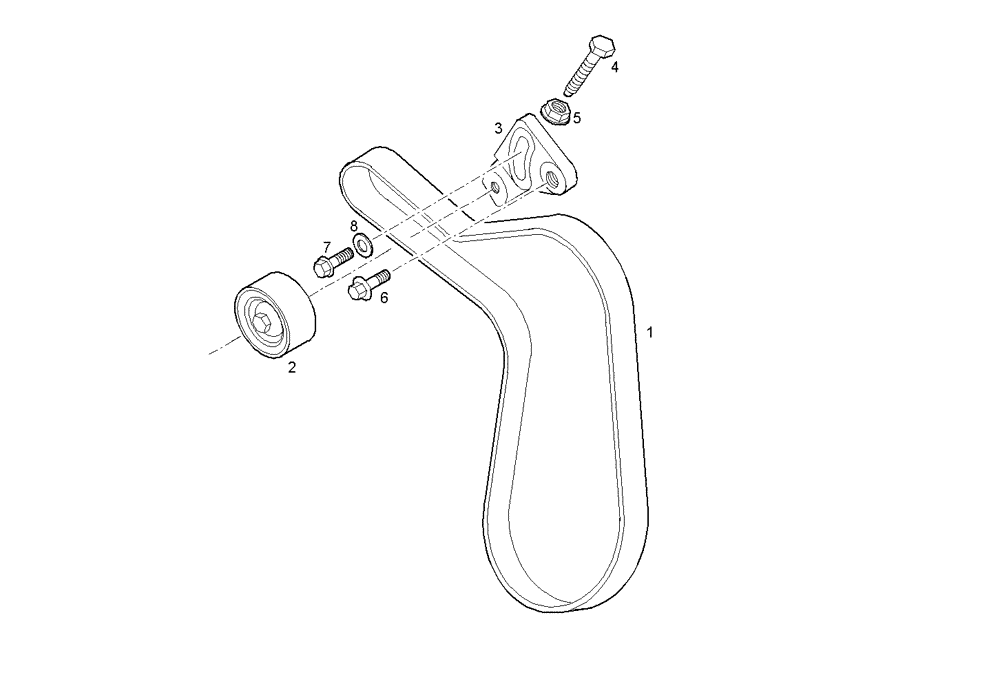

Запчасти Case IH F4CE0304A D600 (3400.016) - WATER PUMP DRIVE

1

47131754

V-BELT,28.48 mm W x 1381.00 mm L, 8 Ribs

WATER PUMP BELT

1шт.

2

2853006

PULLEY,65mm OD

PULLEY

1шт.

3

2853668

BELT TENSIONER

BELT TENSIONER

1шт.

4

2853650

SCREW,Hex, M10 x 1.5 x 80mm, Cl 8.8

HEXAGON BOLT

1шт.

5

17044821

NUT

NUT, M10

1шт.

6

16673835

BOLT,Hex, M8 x 30mm

HEXAGON BOLT, M8X30 MM

1шт.

7

16675835

SCREW,M10 x 30mm

HEXAGON BOLT, M10X30 MM

1шт.

8

14489004

WASHER

WASHER, 10x21

1шт.
