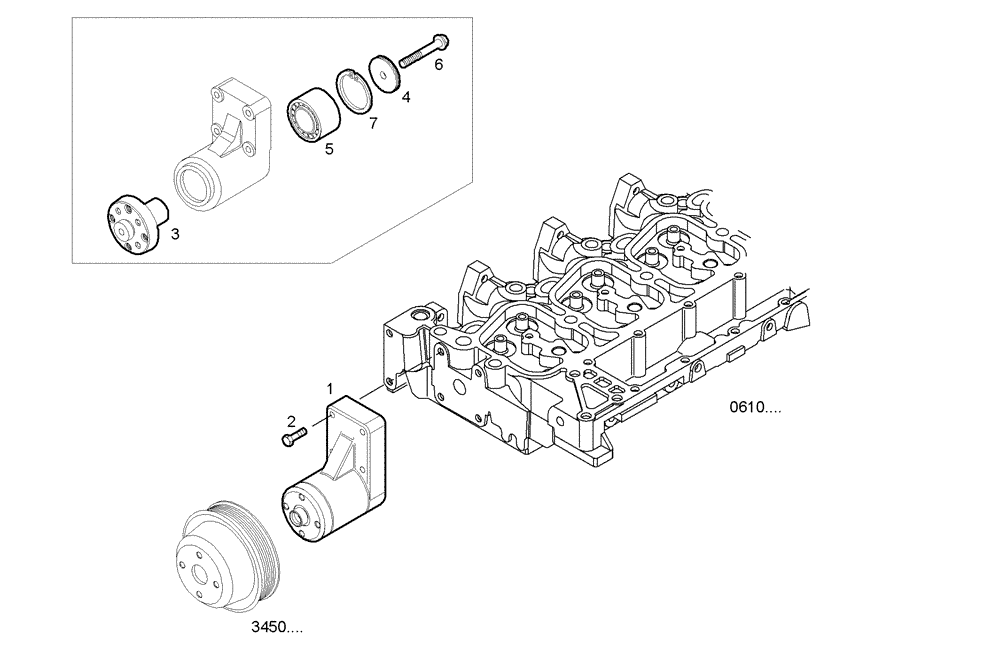

Запчасти Case IH F4BE0484F D606 (3490.001) - FAN SUPPORT

1

2852170

SUPPORT

SUPPORT, ASSY

1шт.

2

4899053

SCREW,Hex Flg, M8 x 45

HEXAGON BOLT

4шт.

3

4892426

HUB

HUB

1шт.

4

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

WASHER

1шт.

5

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

BALL BEARING

1шт.

6

2852172

BOLT,Flng, M10 x 1.5 x 70mm

HEXAGON BOLT, M10X70 MM

1шт.

7

32324

SNAP RING,2.44", Int, #244

SPRING LOCKWASHER

1шт.
