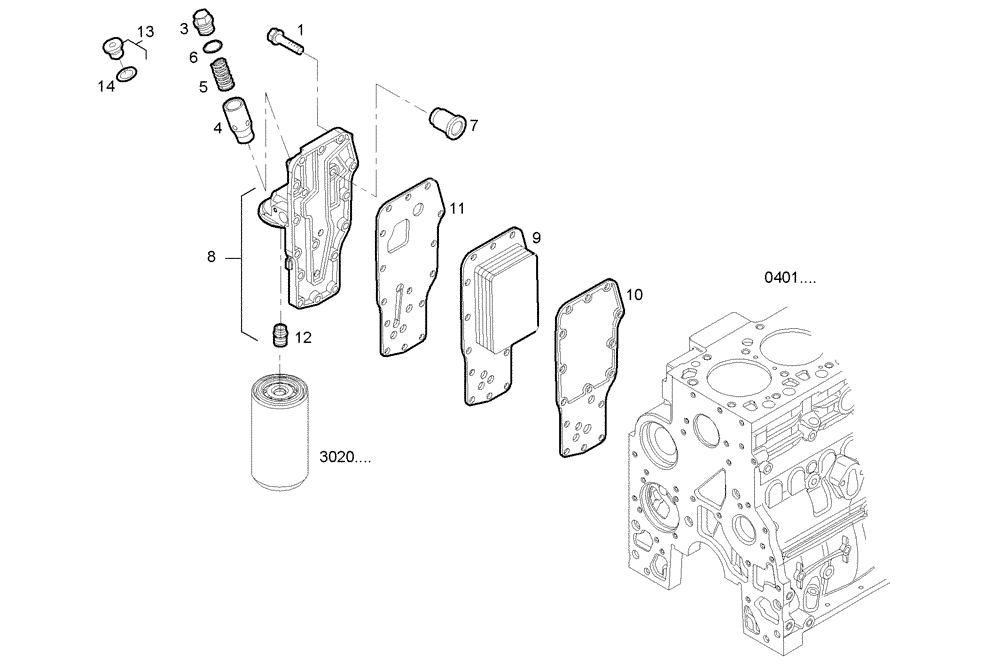

Запчасти Case IH F4BE0484F D606 (3150.007) - OIL - WATER HEAT EXCHANGER

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

HEXAGON BOLT, M8X35 MM

15шт.

3

4895043

PLUG

THREADED PLUG, UP TO # 155899

1шт.

4

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

VALVE HOUSING

1шт.

5

4895045

SPRING,Compression, 14.7mm OD x 66mm L

VALVE SPRING

1шт.

6

4899035

O-RING,2.62mm Thk x 18.39mm ID

O-RING, UP TO # 155899

1шт.

7

J936365

VALVE PRESSURE RELIE

VALVE

1шт.

8

4899643

FILTER HEAD

HEAT EXANGER BODY, ASSY

1шт.

9

4896406

HEAT EXCHANGER

OIL COOLER

1шт.

10

2830559

GASKET,0.5mm Thk

FLAT ENGINE GASKET

1шт.

11

4896409

GASKET,1.55mm Thk

FLAT ENGINE GASKET

1шт.

12

4893391

ADAPTER,M24 x 2 x M27 x 2

THREADED UNION

1шт.

13

504096409

PLUG

THREADED PLUG, ASSY, FROM # 155900

1шт.

14

17916280

SEAL

O-RING, FROM # 155900

1шт.
