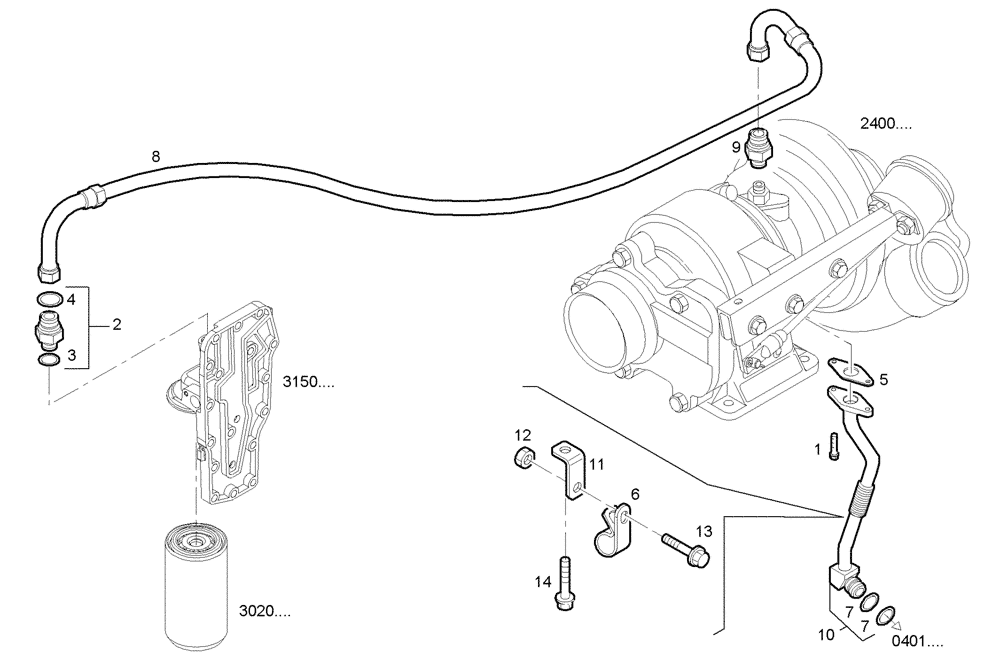

Запчасти Case IH F4BE0484F D606 (3063.000) - TURBOCHARGER OIL LINES

1

4895164

SCREW,Hex, Flg Hd, M6 x 16

HEXAGON BOLT

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

THREADED UNION, ASSY

2шт.

3

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

O-RING

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

O-RING

2шт.

5

4899467

GASKET

FLAT ENGINE GASKET

1шт.

6

4899519

CLAMP,M16, M6 Bolt

BRACKET

1шт.

7

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

O-RING, DIA 17,12 SP 2,62

2шт.

8

4899377

HOSE

OIL LINE, INLET

1шт.

9

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

PIPE SOCKET

1шт.

10

504053911

RIGID TUBE

OIL LINE, OUTLET

1шт.

11

2852196

BRACKET

FASTENING BRACKET

1шт.

12

2852197

FLANGE NUT,M6 x 1

HEXAGON NUT, M6

1шт.

13

18137825

BOLT,Hex, M6 x 16mm

HEXAGON BOLT, M6X16

1шт.

14

4899068

BOLT,Flng, M8 x 1.25 x 16mm

HEXAGON BOLT, M8X17 MM

1шт.
