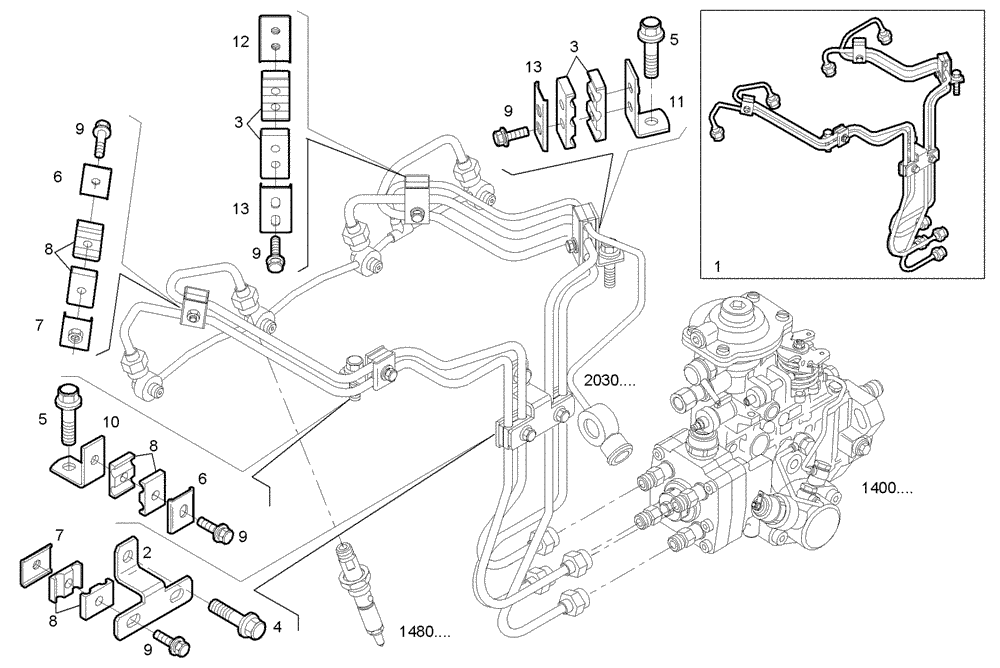

Запчасти Case IH F4BE0484F D606 (2020.133) - INJECTION PIPES

1

2852535

KIT

INJECTION LINE SET

1шт.

2

4896761

BRACKET

RETAINER

1шт.

3

4896919

SHOCK ABSORBER

DOWEL

4шт.

4

4896884

BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9

HEXAGON BOLT

1шт.

5

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

HEXAGON BOLT, M8X1,25X25 MM

2шт.

6

4895242

BRACKET

FASTENING BRACKET

2шт.

7

4895251

BRACKET

FASTENING BRACKET

3шт.

8

4895252

SHOCK ABSORBER

DOWEL

8шт.

9

4895310

CAPTIVE WASHER SCREW

HEXAGON BOLT

8шт.

10

4895346

BRACKET

FASTENING BRACKET

1шт.

11

4896907

BRACKET

FASTENING BRACKET

1шт.

12

4898638

BRACKET

FASTENING BRACKET

1шт.

13

4895590

BRACKET

FASTENING BRACKET

2шт.
