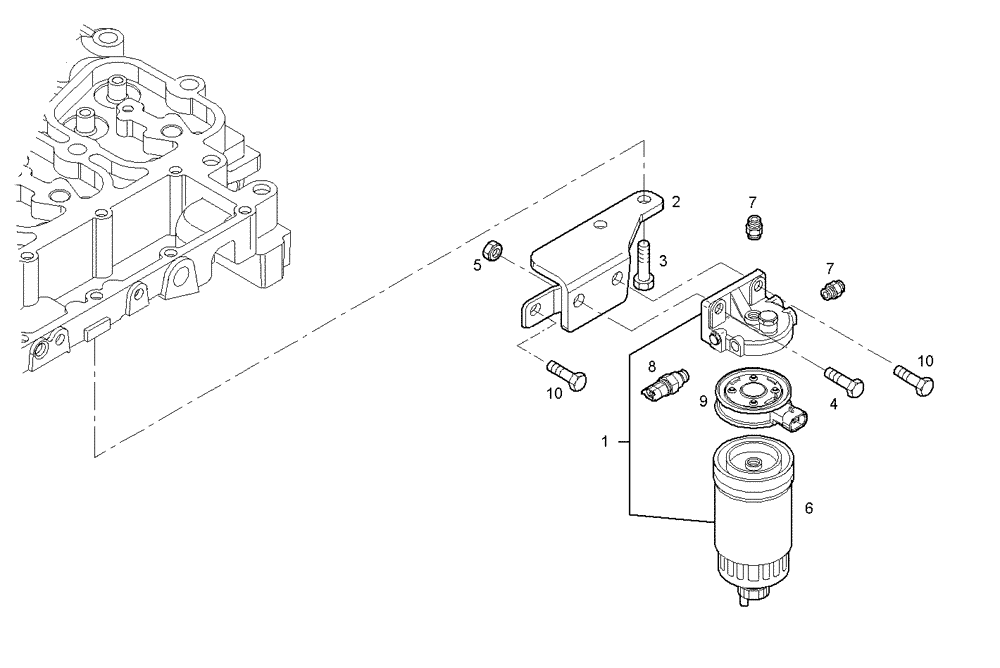

Запчасти Case IH F4BE0484F D606 (2000.131) - FUEL FILTER

1

504067694

FILTER ASSY

FUEL FILTER, ASSY

1шт.

2

2855103

SUPPORT

FUEL FILT.SUPPORT

1шт.

3

4899849

SCREW,Hex, M10 x 1.5 x 35mm

HEXAGON BOLT, M10X35 MM

2шт.

4

4899068

BOLT,Flng, M8 x 1.25 x 16mm

HEXAGON BOLT, M8X17 MM

1шт.

5

4895166

FLANGE NUT,M10, 1.50mm Pitch, Cl 10

HEXAGON NUT, M10X1,5

2шт.

6

504073234

FUEL FILTER

FUEL FILTER ELEM.

1шт.

7

8094525

PIPE SOCKET

FITTING

2шт.

8

8094768

TEMPERATURE SENDER

TEMP. TRANSMITTER

1шт.

9

8094769

HEATER FUEL FILTE

FILTER COVER

1шт.

10

2830411

BOLT,Flng, M8 x 1.25 x 30mm

SCREW

2шт.
