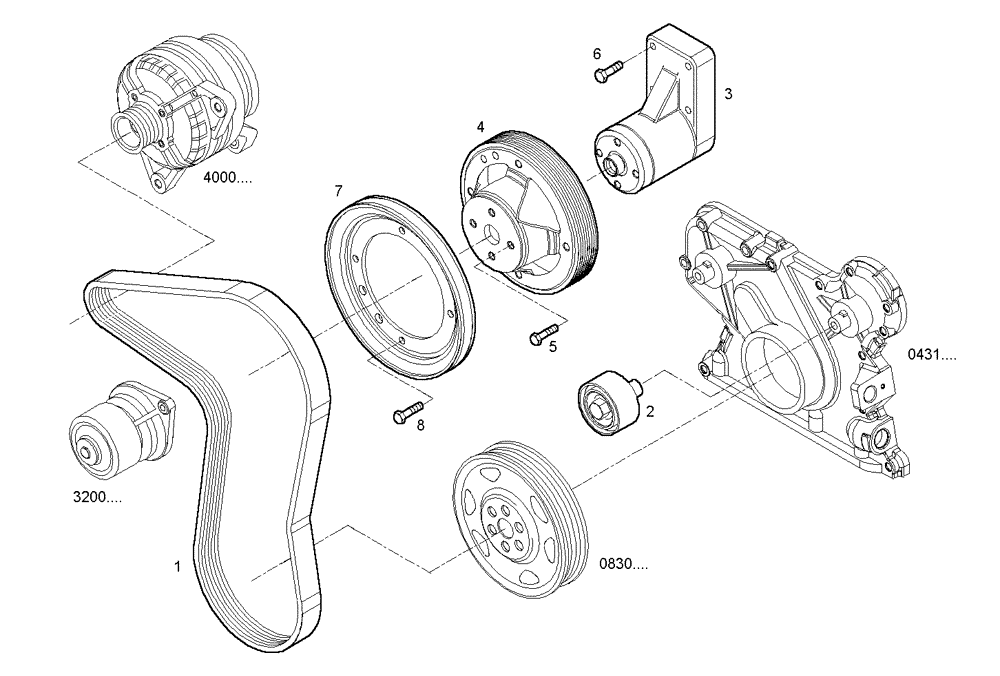

Запчасти Case IH F4BE0484F D601 (3240.139) - PULLEYS AND BELTS

1

85826230

V-BELT,28.48 mm W x 1440.00 mm L, 8 Ribs

V-BELT

1шт.

2

500390511

PULLEY

PULLEY

1шт.

3

2852170

SUPPORT

SUPPORT, ASSY

1шт.

4

2853233

PULLEY,178mm OD

PULLEY

1шт.

5

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

HEXAGON BOLT, M10X25 MM

4шт.

6

4895323

FLANGE BOLT,Hex, M8 x 1.25 x 40mm

HEXAGON BOLT

4шт.

7

2853871

PULLEY

PULLEY

1шт.

8

18138424

SCREW,Hex Flg, M8 x 1.25 x 20mm

HEXAGON BOLT, M8X20 MM

4шт.
