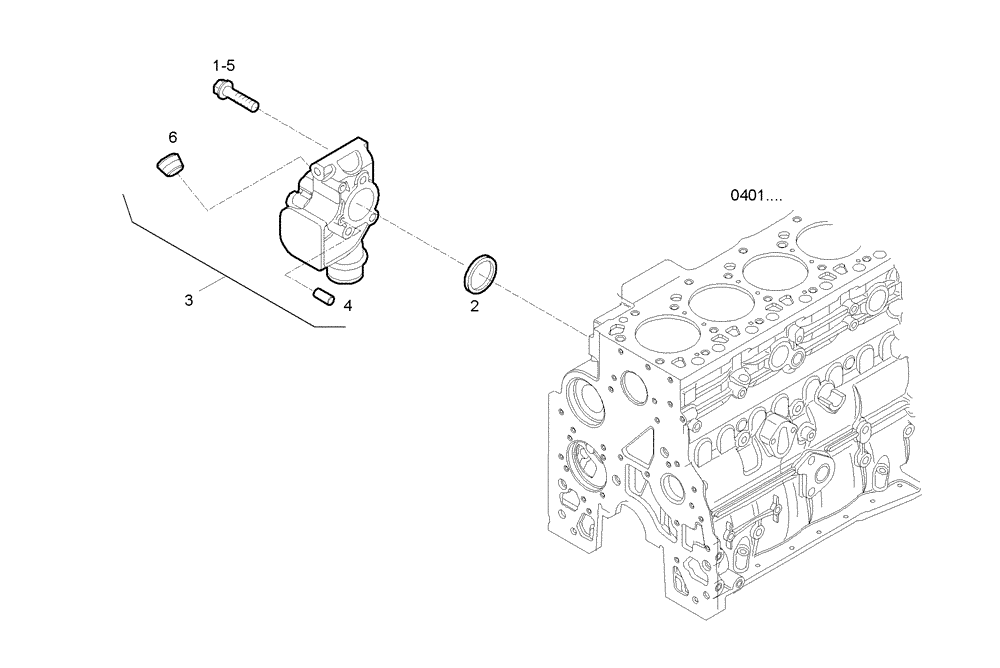

Запчасти Case IH F4BE0484F D601 (3230.034) - WATER PIPE

1

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

HEXAGON BOLT, M10X1,5X70 MM

1шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

WASHER

1шт.

3

2853125

HOUSING

GENERATOR SUPPORT, ASSY

1шт.

4

504023030

DOWEL

DOWEL PIN

2шт.

5

16599025

SCREW,Hex, M10 x 120mm, Cl 8.8

SCREW, M10X120 MM

2шт.

6

504023028

PLUG

THREADED PLUG

1шт.
