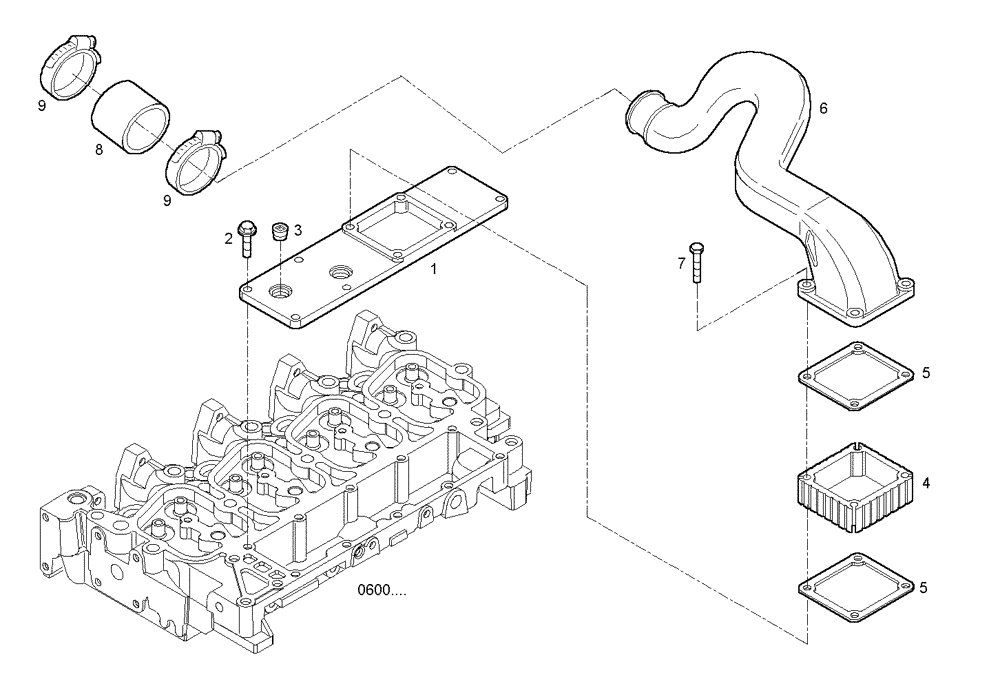

Запчасти Case IH F4BE0454G D600 (0710.149) - INTAKE MANIFOLD

1

4895312

COVER

COVER

1шт.

2

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

HEXAGON BOLT, M8X1,25X25 MM

4шт.

3

4895078

PIPE PLUG,1/2"-14

THREADED PLUG

2шт.

4

4895648

SPACER

SPACING BAR

1шт.

5

4899921

GASKET,1.2mm Thk

FLAT ENGINE GASKET

2шт.

6

2853075

ELBOW,330, 101 mm Length

INTAKE ELBOW

1шт.

7

16592624

FLANGE BOLT,Hex, M8 x 80mm, Cl 8.8

HEXAGON BOLT, M8X80 MM

4шт.

8

98421377

HOSE

RUBBER SLEEVE, dia=51 MM

1шт.

9

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

PIPE CLIP, dia=40-60 MM

2шт.
