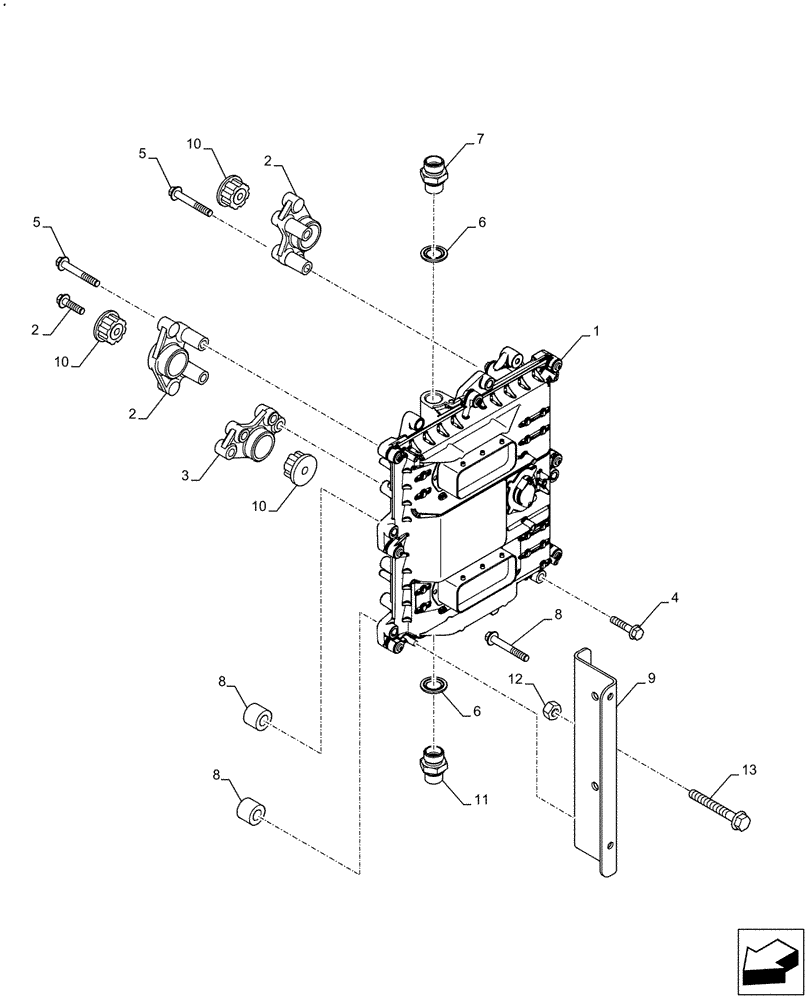

Запчасти Case IH F3JFE613A B005 (55.015.AA) - ENGINE, CONTROL UNIT (55) - ELECTRICAL SYSTEMS

1

504388754

CONTROL UNIT

1шт.

1

504388754R

REMAN ELECT CONTROL

1шт.

1

504388754C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

504368710

BRACKET

2шт.

3

504297839

BRACKET

1шт.

4

16586025

SCREW,Hex, M6 x 30mm

2шт.

5

17935001

SELF-TAP SCREW,Hex Flng, M5.5 x 1.8 x 45mm

4шт.

6

5801560870

WASHER

2шт.

7

5801496226

HYD CONNECTOR

1шт.

8

61319288

SPACER

3шт.

9

5801777023

BRACKET

1шт.

10

5801406998

SHOCK ABSORBER

6шт.

11

504081274

HYD CONNECTOR

1шт.

12

17044735

NUT,Hex, M8

3шт.

13

16585925

SCREW,Hex, M6 x 25mm, Cl 8.8

2шт.

13

16586825

BOLT,Hex, M8 x 1.25 x 45mm

2шт.

13

16592325

BOLT,M8 x 60mm

2шт.
