/ / / / / / / / (55.201.AE[02]) - STARTER MOTOR, COMPONENTS

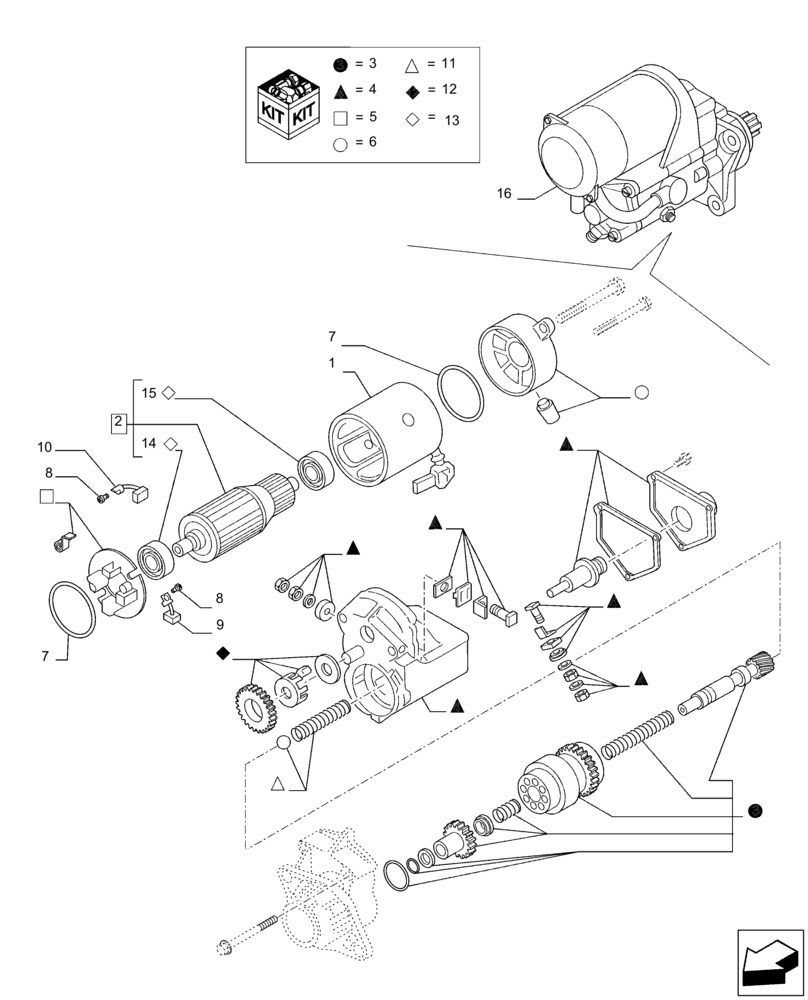

Запчасти Case IH F3JFE613A B004 (55.201.AE[02]) - STARTER MOTOR, COMPONENTS (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case IH F3JFE613A B004 - (55.201.AE[02]) - STARTER MOTOR, COMPONENTS (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5282250.png)
11
12
11
12
13
4
4
13
11
4
12
7
4
15
3
12
8
13
6
4
9
5
8
4
5
11
6
3
13
2
1
3
10
4
6
7
16
12
14
5
4
1
42471438
STATOR
Winding
1шт.
2
42471439
ARMATURE
Kit
1шт.
3
42471440
KIT, STARTER MTR REP
1шт.
4
42471441
KIT, STARTER MTR REP
1шт.
5
42471442
KIT, STARTER MTR REP
1шт.
6
42471443
HOUSING
1шт.
7
42471444
O-RING
2шт.
8
42471445
SCREW
4шт.
9
42471446
BRUSH, COMMUTATOR
BRUSH
2шт.
10
42471447
BRUSH, COMMUTATOR
BRUSH
2шт.
11
42471378
KIT, STARTER MTR REP
1шт.
12
42471450
KIT, STARTER MTR REP
1шт.
13
42546503
BEARING
1шт.
14
42471451
KIT, STARTER MTR REP
1шт.
15
42546522
BEARING
1шт.
16
504106753
STARTER MOTOR
1шт.
