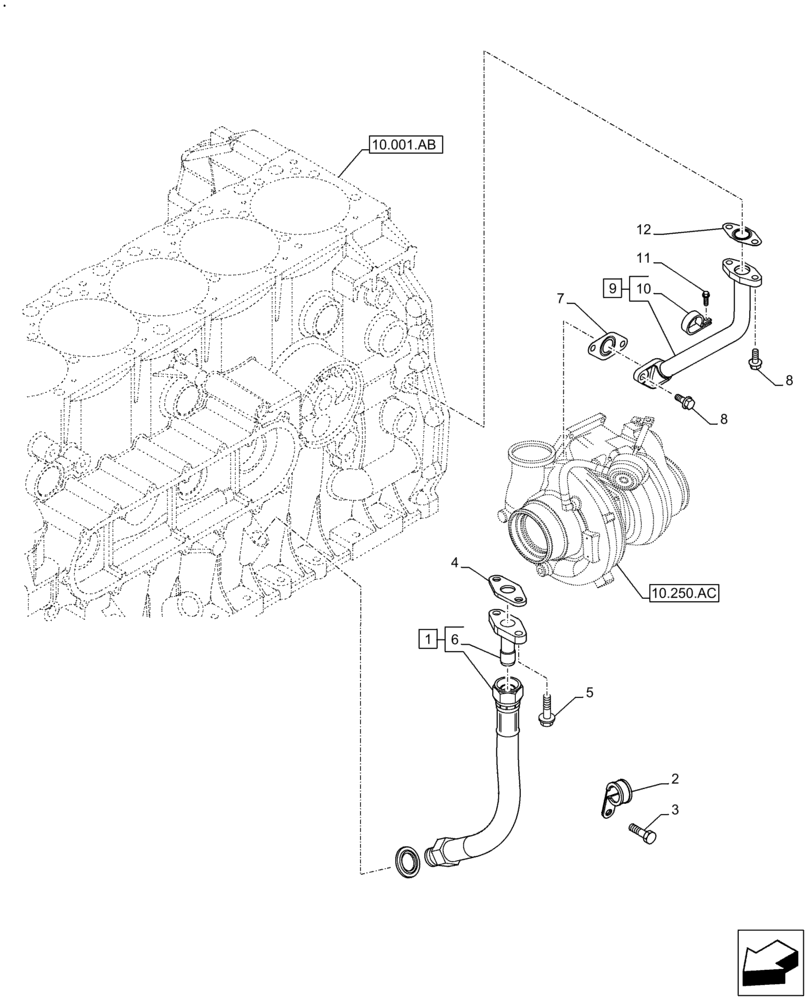

Запчасти Case IH F3JFA613D E001 (10.250.AD) - TURBOCHARGER OIL SUPPLY LINE (10) - ENGINE

1

5801692222

SUCTION PIPE

Assy; incl 6

1шт.

2

17316592

COLLAR

1шт.

3

2852323

SCREW,M8 x 1.25 x 14mm

1шт.

4

504352445

GASKET

1шт.

5

16586625

BOLT,M8 x 35mm

2шт.

6

NSS

NOT SOLD SEPARAT

fitting; incl in 1

1шт.

7

504352448

GASKET

1шт.

8

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

4шт.

9

5801692249

PIPE

Assy; incl 10

1шт.

10

NSS

NOT SOLD SEPARAT

clip; incl in 9

1шт.

11

2852323

SCREW,M8 x 1.25 x 14mm

1шт.

12

5801567664

GASKET

1шт.
