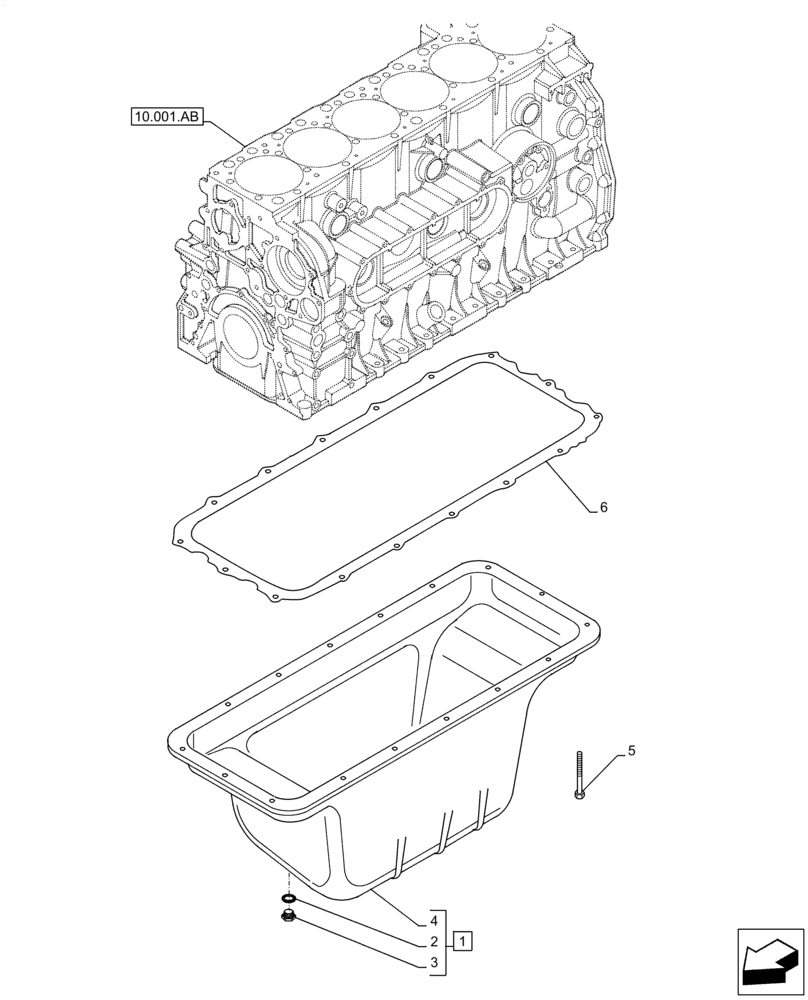

Запчасти Case IH F3JFA613D E001 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

5801878570

ENGINE OIL PAN

ASSY, Incl 2, 3, 7

1шт.

2

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

3шт.

3

10305171

PLUG,M22 x 1.5 x 21

3шт.

4

NSS

NOT SOLD SEPARAT

Oil sump; Incl 1

1шт.

5

16592925

SCREW,M10 x 1.5 x 80mm

16шт.

6

5801748226

GASKET

1шт.
