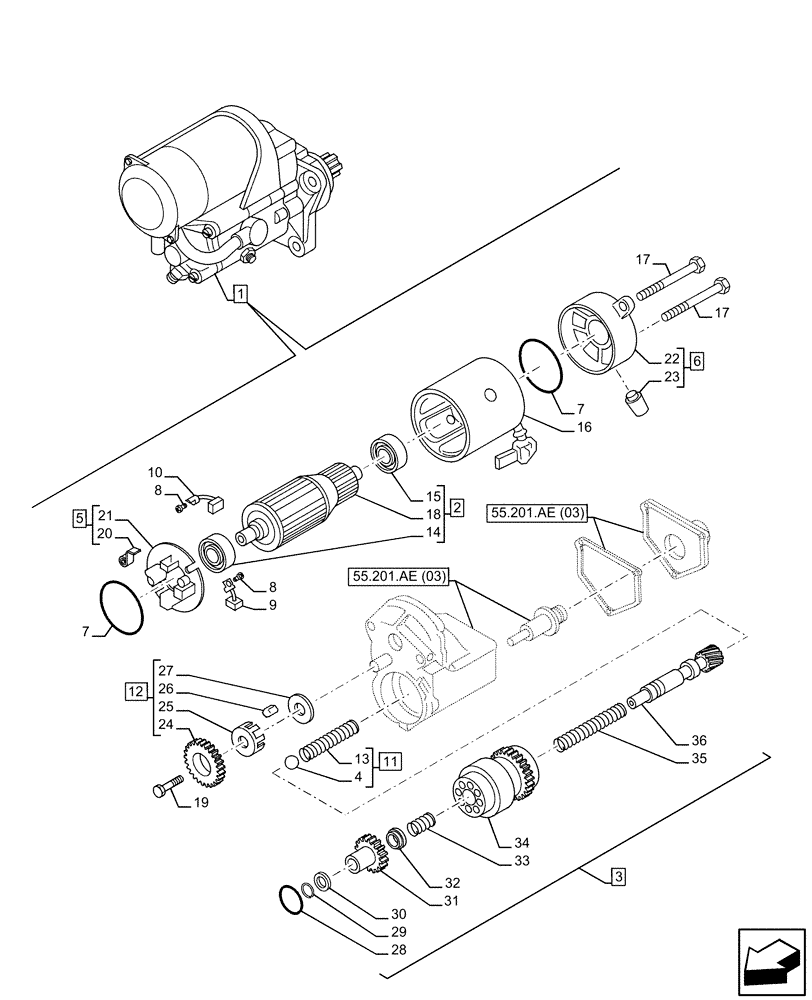

Запчасти Case IH F3HFE613H B007 (55.201.AE[02]) - STARTER MOTOR, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

99486046

STARTER MOTOR

ASSY, Incl 3, 5, 6, 11, 12, 17, 19

1шт.

2

42546503

BEARING

Armature, Incl in 2

1шт.

3

42471440

KIT, STARTER MTR REP

ASSY, Incl 30 - 38

1шт.

4

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 11

1шт.

5

42471442

KIT, STARTER MTR REP

ASSY, Incl 20, 21

1шт.

6

42471443

HOUSING

ASSY, Incl 22, 23

1шт.

7

42471444

O-RING

2шт.

8

42471445

SCREW

M5

4шт.

9

42471446

BRUSH, COMMUTATOR

2шт.

10

42471447

BRUSH, COMMUTATOR

2шт.

11

42471378

KIT, STARTER MTR REP

ASSY, Incl 4, 13

1шт.

12

42471450

KIT, STARTER MTR REP

ASSY, Incl 26 - 29

1шт.

13

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 11

1шт.

14

42546503

BEARING

Incl 14 - 15

1шт.

14

42471541

BEARING

1шт.

15

42546522

BEARING

1шт.

16

42471438

STATOR

1шт.

17

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

3шт.

18

42471439

ARMATURE

ASSY, Incl 14, 15, 18

1шт.

19

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 5

1шт.

21

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 5

1шт.

22

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 6

1шт.

23

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 6

1шт.

24

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 12

1шт.

25

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 12

1шт.

26

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 12

1шт.

27

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 12

1шт.

28

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

29

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

30

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

31

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

32

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

33

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

34

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

35

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

36

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.
