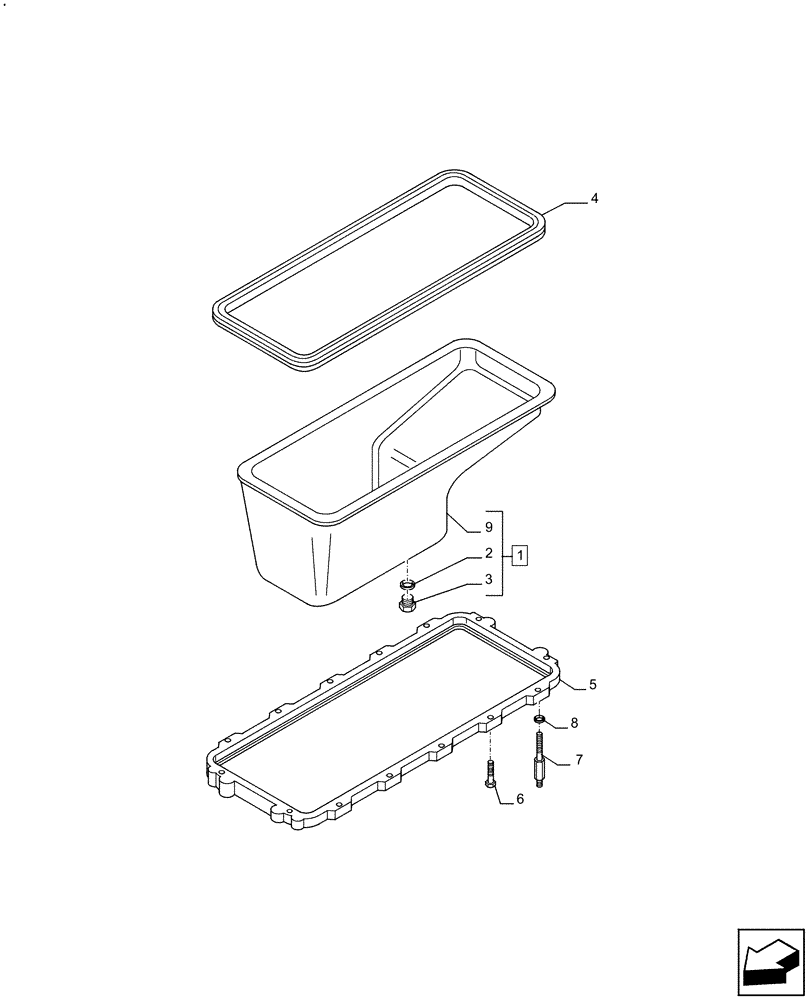

Запчасти Case IH F3HFE613H B007 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

504388083

ENGINE OIL PAN

Assy, Incl 2 - 3, 9

1шт.

2

99489022

GASKET,22mm ID x 30mm OD x 1.50mm Thk

1шт.

3

16992611

PLUG

M22 x 1.5

1шт.

4

5801464913

GASKET

1шт.

5

504276421

SPACER

1шт.

6

16587525

BOLT,M10 x 45mm

12шт.

7

504005577

PROP

4шт.

8

17095024

WASHER

4шт.

9

NSS

NOT SOLD SEPARAT

Engine Oil Pan, Incl in 1

1шт.
