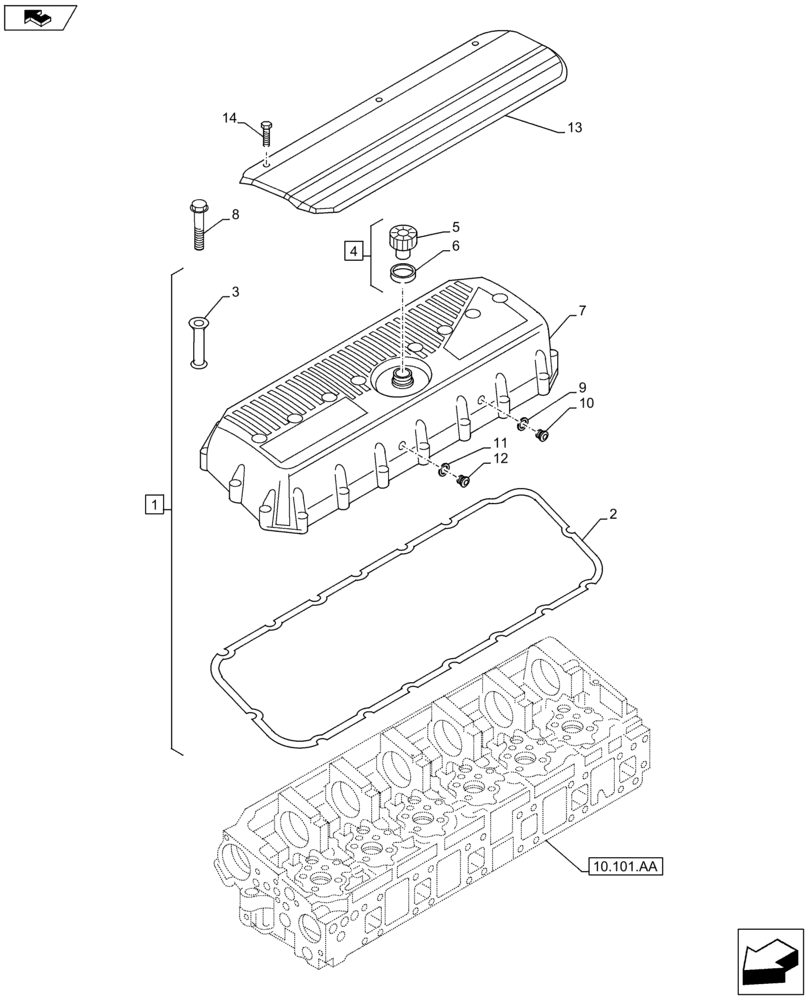

Запчасти Case IH F3HFE613D B002 (10.101.AB) - CYLINDER HEAD, COVER (10) - ENGINE

1

5801614257

COVER

ASSY. Incl 2 - 7, 9 - 12

1шт.

2

5801512813

GASKET

1шт.

3

99446693

BUSHING

24шт.

4

504262827

CAP

ASSY. Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

1шт.

6

2852774

GASKET,38mm ID x 51mm OD x 8mm Thk

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

8

16591925

BOLT,M6 x 50mm

M6 x 50

24шт.

9

87665413

SEALING WASHER,7.9mm ID x 17.0mm OD x 1.5mm Thk

1шт.

10

16992115

PLUG,Threaded, M10 x 1

1шт.

11

5801560870

WASHER

1шт.

12

10300714

PLUG,M16 x 1.5 x 14

1шт.

13

5801638244

SHIELD

1шт.

14

16597425

BOLT,Hex, M10 x 16mm, Cl 8.8

3шт.
