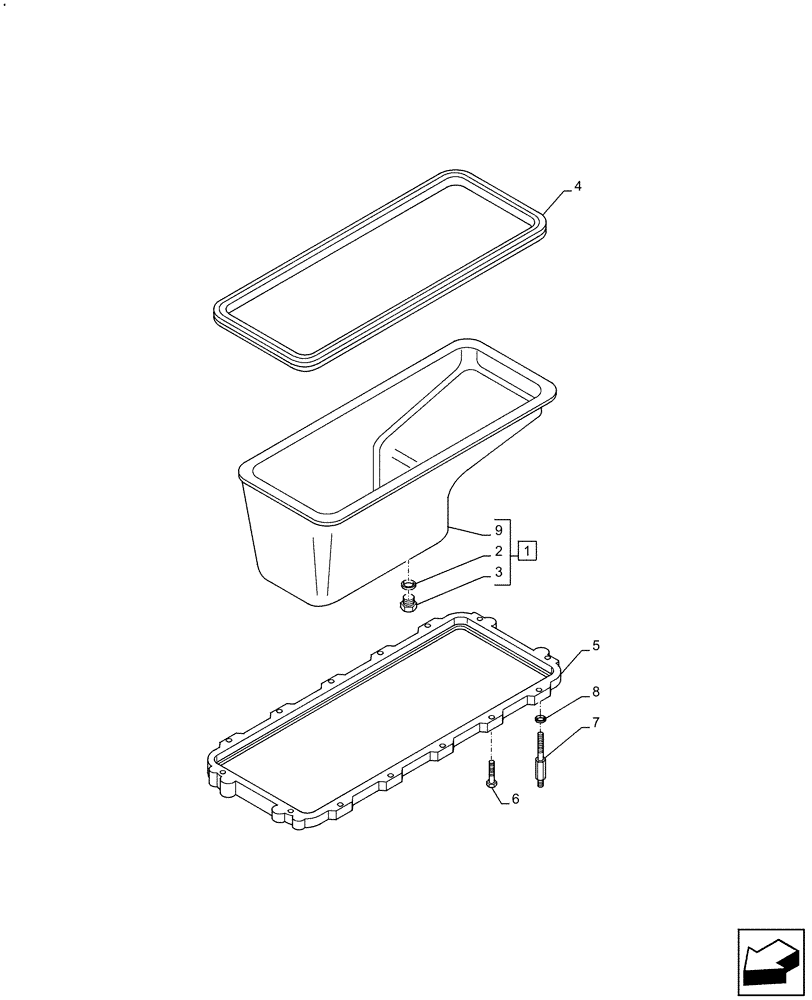

Запчасти Case IH F3HFE613 B003 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

504024778

ENGINE OIL PAN

Assy; incl 2-3, 9

1шт.

2

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

3

10305171

PLUG,M22 x 1.5 x 21

1шт.

4

5801464913

GASKET

1шт.

5

504276421

SPACER

1шт.

6

16587525

BOLT,M10 x 45mm

12шт.

7

504005577

PROP

4шт.

8

17095024

WASHER

4шт.

9

NSS

NOT SOLD SEPARAT

OIL SUMP; incl in 1

1шт.
