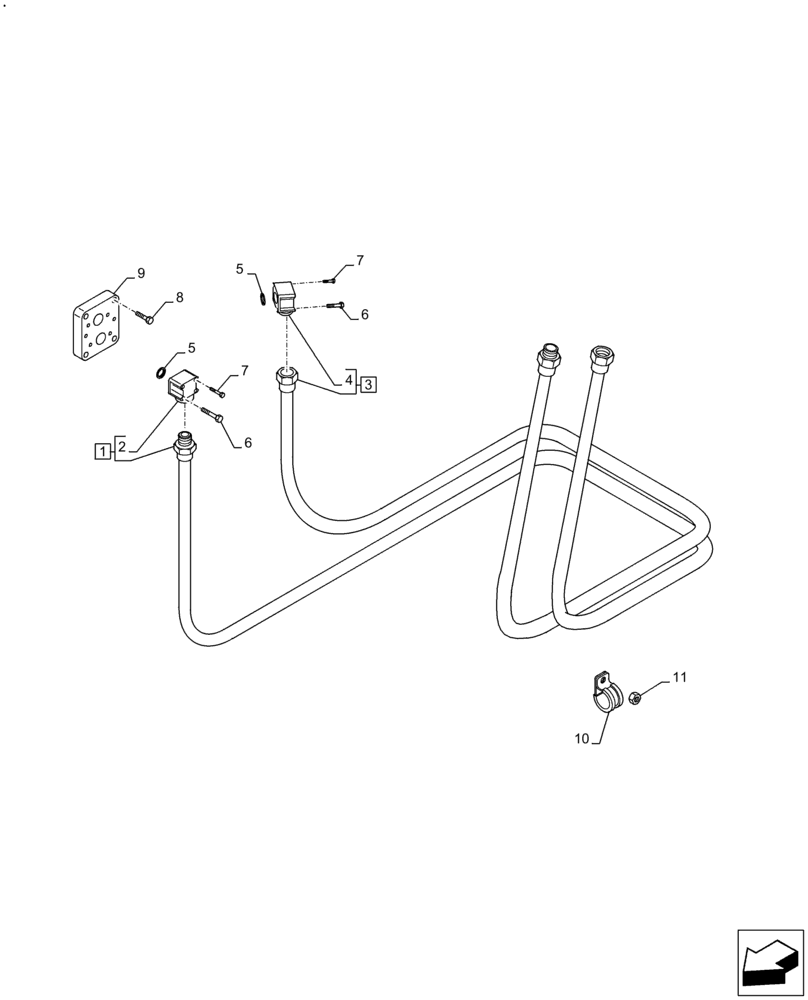

Запчасти Case IH F3GFE613B B001 (10.304.AF) - ENGINE OIL FILTER LINE (10) - ENGINE

1

5801781412

PIPE

ASSY, Incl 2

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

5801781411

PIPE

ASSY, Incl 4

1шт.

4

NSS

NOT SOLD SEPARAT

Fitting Incl in 3

1шт.

5

17282681

GASKET

6шт.

6

16592225

BOLT,M8 x 55mm

2шт.

7

16673835

BOLT,Hex, M8 x 30mm

6шт.

8

16586625

BOLT,M8 x 35mm

5шт.

9

5801637531

SUPPORT

1шт.

10

17317392

BRACKET

8шт.

11

17044725

NUT,Hex, M8

4шт.
