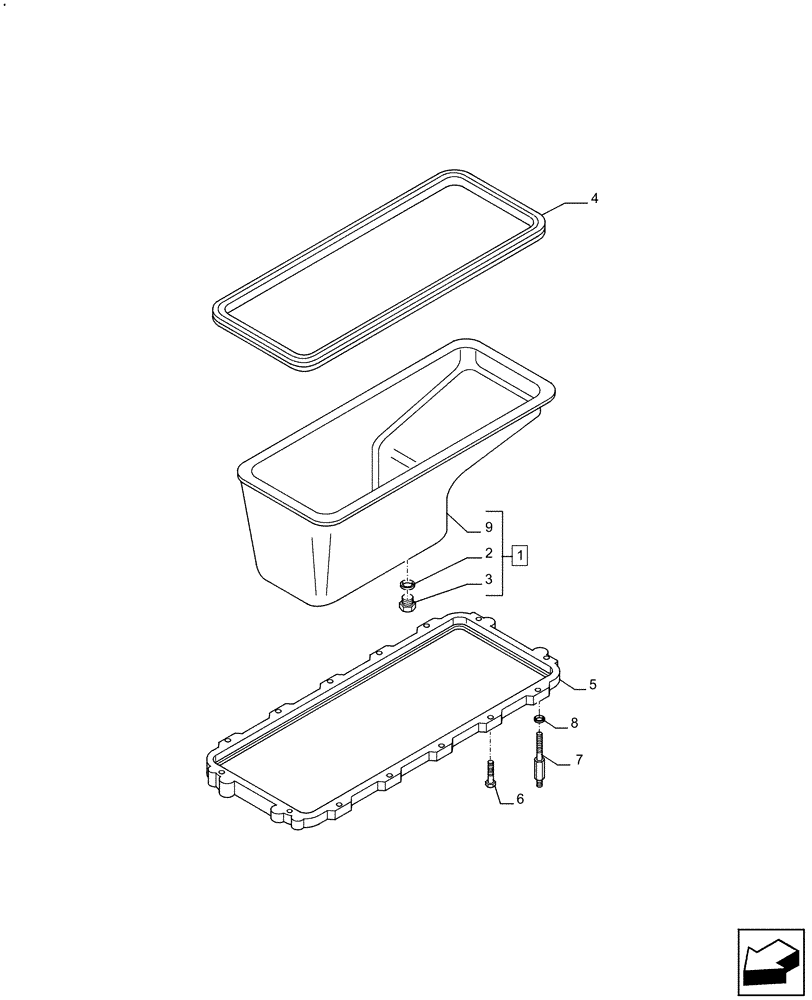

Запчасти Case IH F3GFE613A B001 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

500336615

ENGINE OIL PAN

Assy; incl 2-3, 9

1шт.

2

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22 mm

1шт.

3

10305171

PLUG,M22 x 1.5 x 21

M22 x 1.5

1шт.

4

504262851

GASKET

1шт.

5

504160436

SPACER

1шт.

6

16587525

BOLT,M10 x 45mm

M10X45 mm

12шт.

7

504005577

PROP

4шт.

8

17095024

WASHER

4шт.

9

NSS

NOT SOLD SEPARAT

ENGINE OIL PAN; incl in 1

1шт.
