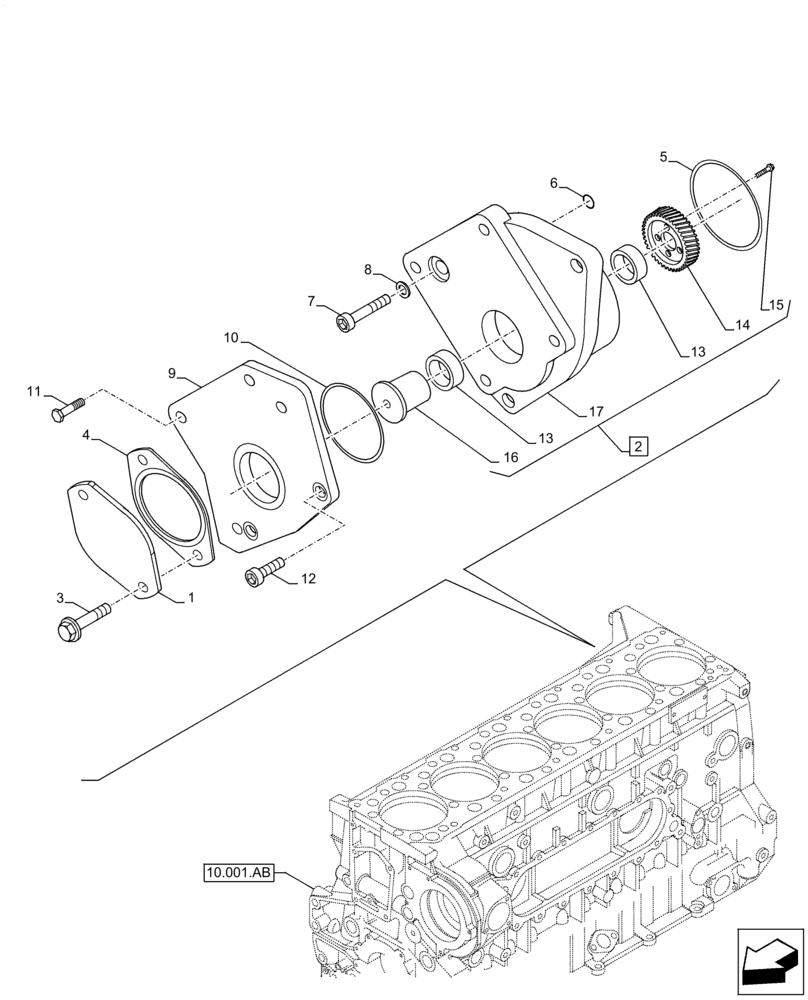

Запчасти Case IH F3DFE613F B002 (14.100.AR) - PTO GEAR HOUSING (14) - MAIN GEARBOX & DRIVE

1

2852175

COVER

1шт.

2

504381312

PTO

1шт.

3

16692225

BOLT

2шт.

4

4895329

GASKET

1шт.

5

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

D=126,59 mm Sp=3,53

1шт.

6

14456881

O-RING,0.362" ID x 0.103" Width

D=9,19 mm

1шт.

7

1103790

SCREW

M12 x 45 mm

3шт.

8

17095224

WASHER

D=12 x 20 mm

3шт.

9

504061368

SPACER

1шт.

10

504042516

O-RING

1шт.

11

16587325

SCREW,Hex, M10 x 35mm

M10 x 35 mm

2шт.

12

16693724

SCREW,M12

M12

2шт.

13

500350833

BEARING

Incl. in 2

2шт.

14

504020648

GEAR

Incl. in 2

1шт.

15

16675835

SCREW,M10 x 30mm

M10 x 30 mm. Incl. in 2

4шт.

16

NSS

NOT SOLD SEPARAT

Incl. in 2

1шт.

17

NSS

NOT SOLD SEPARAT

Incl. in 2

1шт.
