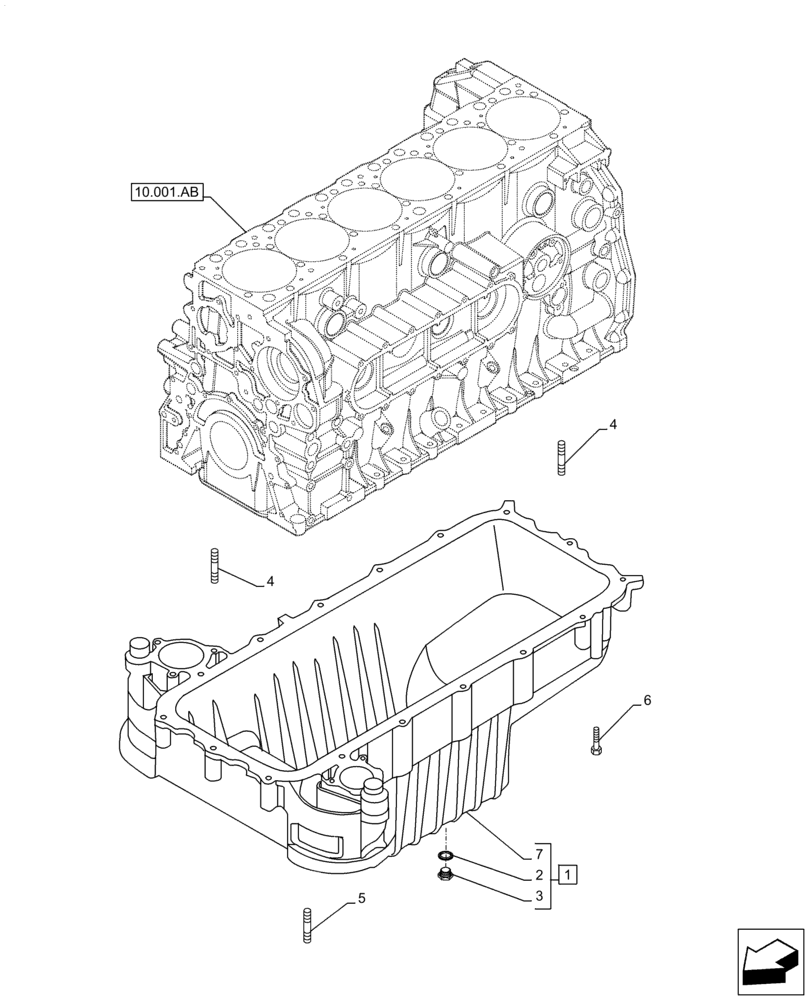

Запчасти Case IH F3DFE613F B002 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

5801654507

SUMP

ASSY, Incl 2, 3, 7

1шт.

2

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

3

10305171

PLUG,M22 x 1.5 x 21

1шт.

4

16748734

SCREW

6шт.

5

13517024

STUD

12шт.

6

16592925

SCREW,M10 x 1.5 x 80mm

14шт.

6

5801743496

SCREW,M10 x 140mm

2шт.

7

NSS

NOT SOLD SEPARAT

Oil sump, Incl in 1

1шт.

8

5801748226

GASKET

Oil sump gasket

1шт.
