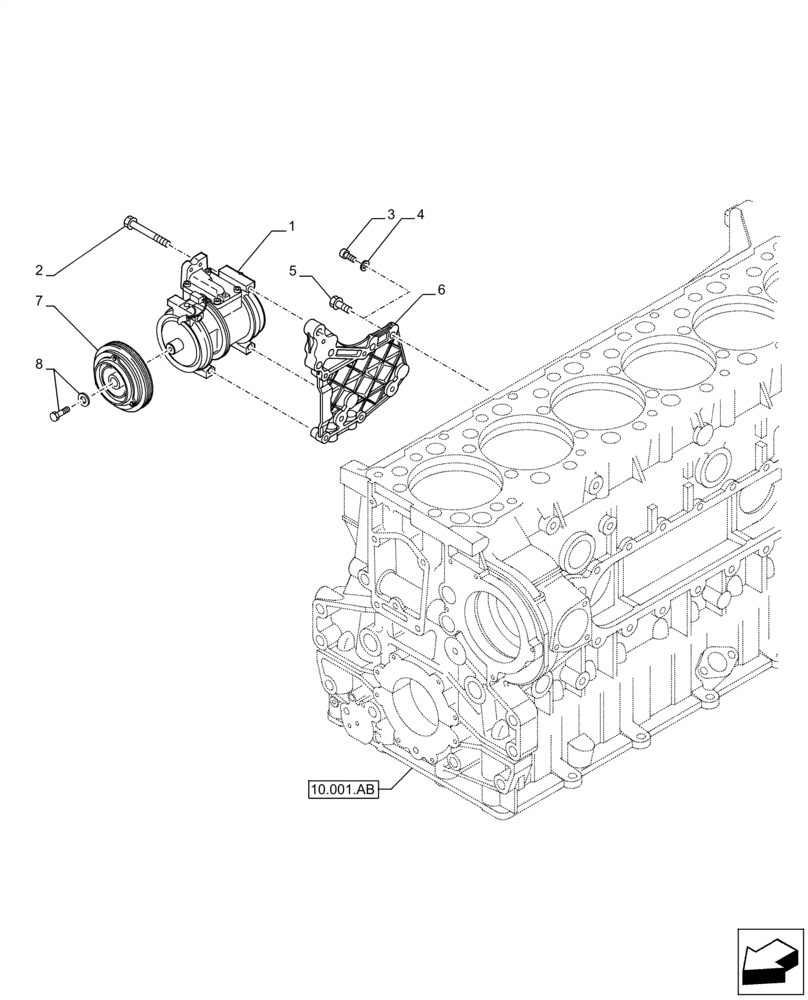

Запчасти Case IH F3DFE613F B001 (50.200.AA) - AIR COMPRESSOR, SUPPORT (50) - CAB CLIMATE CONTROL

1

86993463

AIRCOND. COMPRESSOR

1шт.

1

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

1

86993463R

REMAN-A/C COMPRESSOR

1шт.

1

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

16598325

BOLT,Hex, M8 x 100mm

M8 x 100 mm

4шт.

3

504080093

BOLT

M7 x 16

2шт.

4

17097024

WASHER

D=10 x 21 mm

2шт.

5

16692324

BOLT

M=10x 1,25x 35 mm

2шт.

6

504078624

BRACKET, SUPPORTING

1шт.

7

8093816

CLUTCH

1шт.

8

42535660

KIT

1шт.
