(10.304.01[01]) - PUMP, ENGINE OIL & RELATED PARTS (504052983)

Запчасти Case IH F3DFE613B A002 (10.304.01[01]) - PUMP, ENGINE OIL & RELATED PARTS (504052983) (10) - ENGINE

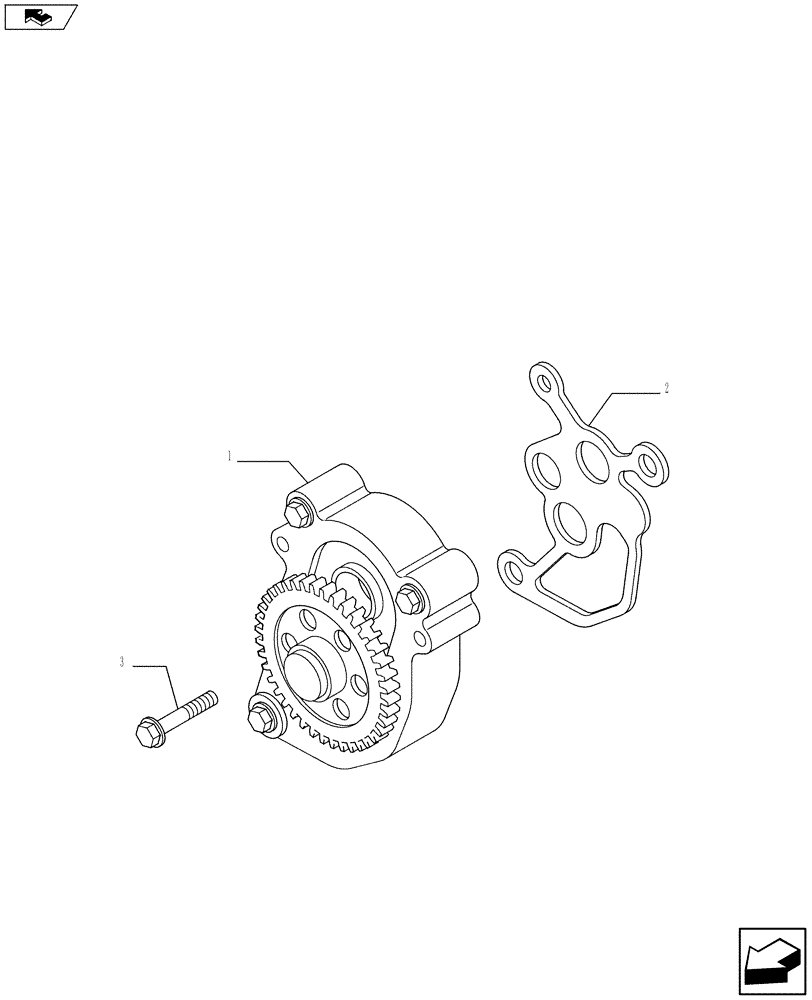

Схема запчастей Case IH F3DFE613B A002 - (10.304.01[01]) - PUMP, ENGINE OIL & RELATED PARTS (504052983) (10) - ENGINE
3
1
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504155933

ENGINE OIL PUMP

1шт.

1

504155933R

REMAN-ENG OIL PUMP

1шт.

1

504155933C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

500387958

GASKET

1шт.

3

16592425

BOLT,M8 x 65mm

2шт.

3

16586724

SCREW,M8 x 1.25 x 40mm

M8 x 40

1шт.
