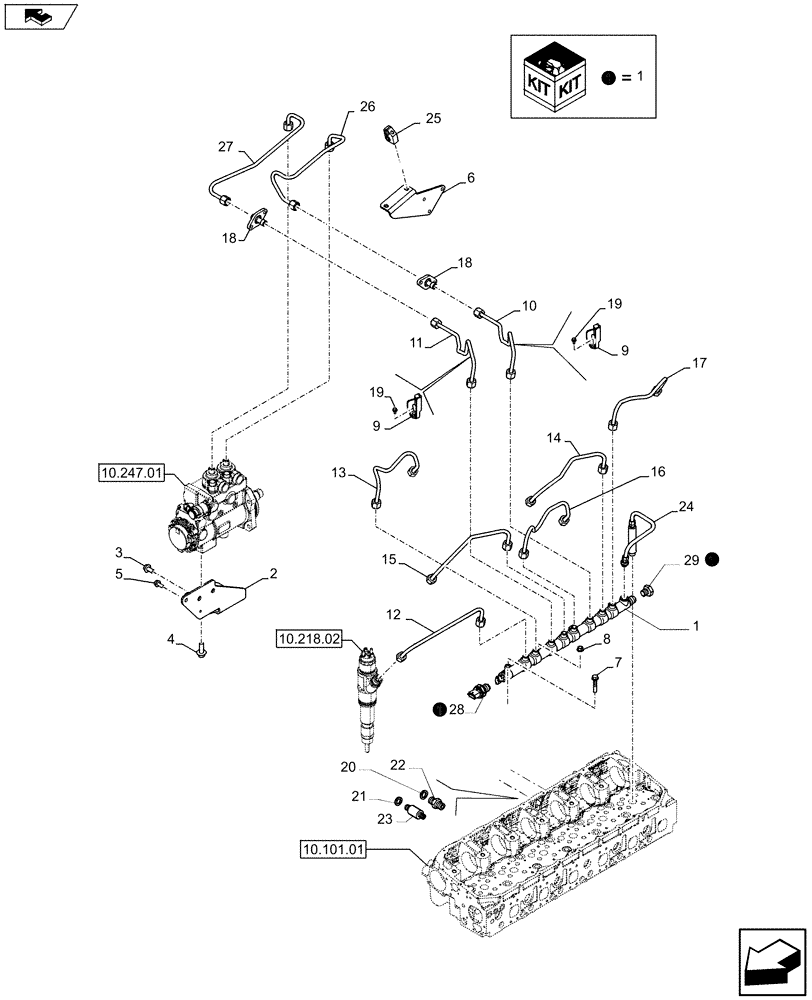

Запчасти Case IH F3DFE613B A001 (10.218.03) - FUEL LINES & RELATED PARTS (504386750) (10) - ENGINE

1

504388755

INJECTION PIPE

ASSY

1шт.

2

504384407

BRACKET, SUPPORTING

1шт.

3

2856035

SCREW,Flng, M12 x 30mm, Cl 8.8

M12 x 30

2шт.

4

18139424

SCREW,Hex, M10 x 20mm

M10 x 20

2шт.

5

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

M8 x 20

1шт.

6

504385780

BRACKET, SUPPORTING

1шт.

7

16586825

BOLT,Hex, M8 x 1.25 x 45mm

M8 x 45

3шт.

8

17044721

NUT

1шт.

9

504385798

BRACKET, SUPPORTING

1шт.

10

504373497

INJECTION PIPE

1шт.

11

504373498

INJECTION PIPE

1шт.

12

504373512

INJECTION PIPE

1шт.

13

504373513

INJECTION PIPE

1шт.

14

504373514

INJECTION PIPE

1шт.

15

504373515

INJECTION PIPE

1шт.

16

504373516

INJECTION PIPE

1шт.

17

504373517

INJECTION PIPE

1шт.

18

504373531

FITTING

2шт.

19

16673735

BOLT,Hex, M8 x 1.25 x 25mm

M8 x 25

4шт.

20

4858609

WASHER,Brass

1шт.

21

98474308

SEALING WASHER,16mm ID x 22mm OD x 1.5mm Thk

1шт.

22

504373643

BANJO BOLT

1шт.

23

504373532

BANJO BOLT

1шт.

24

504384719

INJECTION PIPE

1шт.

25

504373586

BRACKET, SUPPORTING

2шт.

26

504384385

INJECTION PIPE

1шт.

27

504384387

INJECTION PIPE

1шт.

28

504343022

SENSOR

1шт.

29

504347645

VALVE

1шт.
