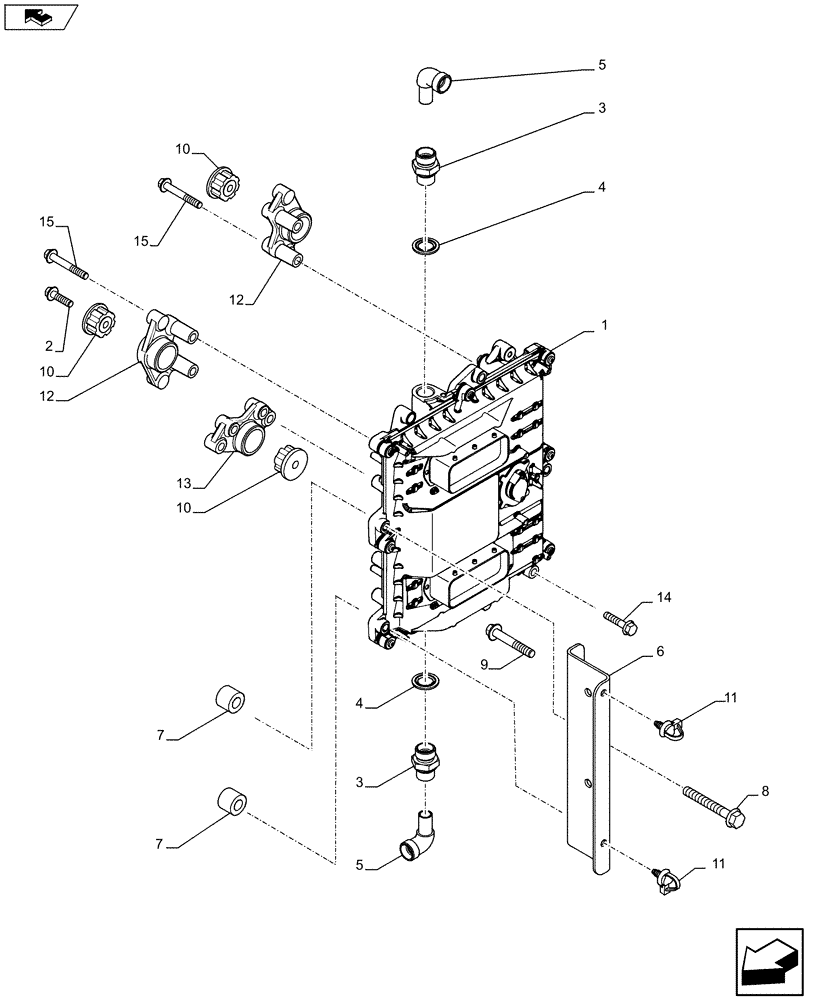

Запчасти Case IH F3DFE613A A002 (55.414.01[01]) - ELECTRONIC INJECTION (504386735) (55) - ELECTRICAL SYSTEMS

1

504388754

CONTROL UNIT

ASSY

1шт.

1

504388754R

REMAN ELECT CONTROL

Reman for New PN 504388754

1шт.

1

504388754C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

16585925

SCREW,Hex, M6 x 25mm, Cl 8.8

2шт.

3

504081274

HYD CONNECTOR

2шт.

4

99489019

SEALING WASHER

2шт.

5

16504114

ELBOW

2шт.

6

5801364240

BRACKET, SUPPORTING

1шт.

7

61319288

SPACER

2шт.

8

16592325

BOLT,M8 x 60mm

M8 x 60

2шт.

9

16586825

BOLT,Hex, M8 x 1.25 x 45mm

M8 x 45

1шт.

10

98498817

ISOLATOR

6шт.

11

504023286

CLIP,200mm L

2шт.

12

504368710

BRACKET

M6 x 25

2шт.

13

504297839

BRACKET

1шт.

14

2854083

BOLT,Flng, M6 x 1 x 30mm

2шт.

15

17935001

SELF-TAP SCREW,Hex Flng, M5.5 x 1.8 x 45mm

4шт.

16

16585925

SCREW,Hex, M6 x 25mm, Cl 8.8

2шт.
