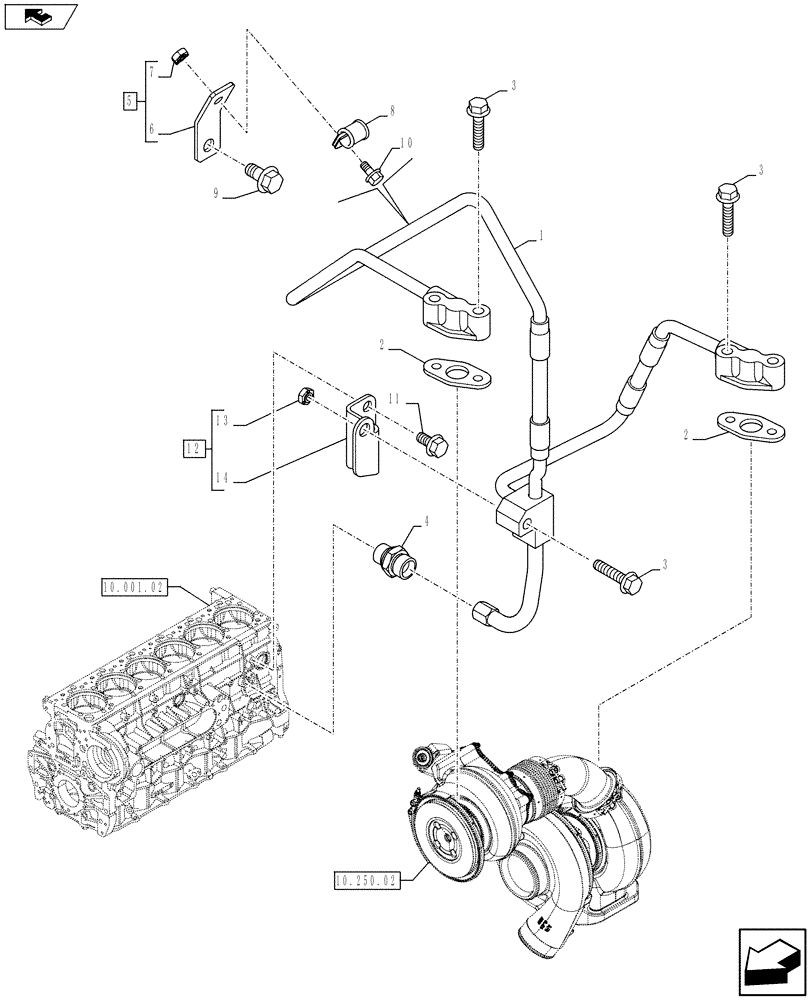

Запчасти Case IH F3DFE613A A001 (10.250.03[01]) - TURBOBLOWER PIPES (504386805) (10) - ENGINE

1

504382148

TUBE

1шт.

2

504352445

GASKET

2шт.

3

16586625

BOLT,M8 x 35mm

M8 x 35

5шт.

4

504081274

HYD CONNECTOR

1шт.

5

504388524

BRACKET, SUPPORTING

ASSY

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

10441390

COLLAR,12mm, Coat, 7mm Bolt Hole, P Type

1шт.

9

18139424

SCREW,Hex, M10 x 20mm

M10 x 20

1шт.

10

16585625

SCREW,Hex, M6 x 12mm

M6 x 12

1шт.

11

16586225

BOLT,M8 x 16mm

2шт.

12

504382446

BRACKET, SUPPORTING

ASSY

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.
