(10.304.01[02]) - PUMP, ENGINE OIL & RELATED PARTS (504161109)

Запчасти Case IH F3DFA613B E004 (10.304.01[02]) - PUMP, ENGINE OIL & RELATED PARTS (504161109) (10) - ENGINE

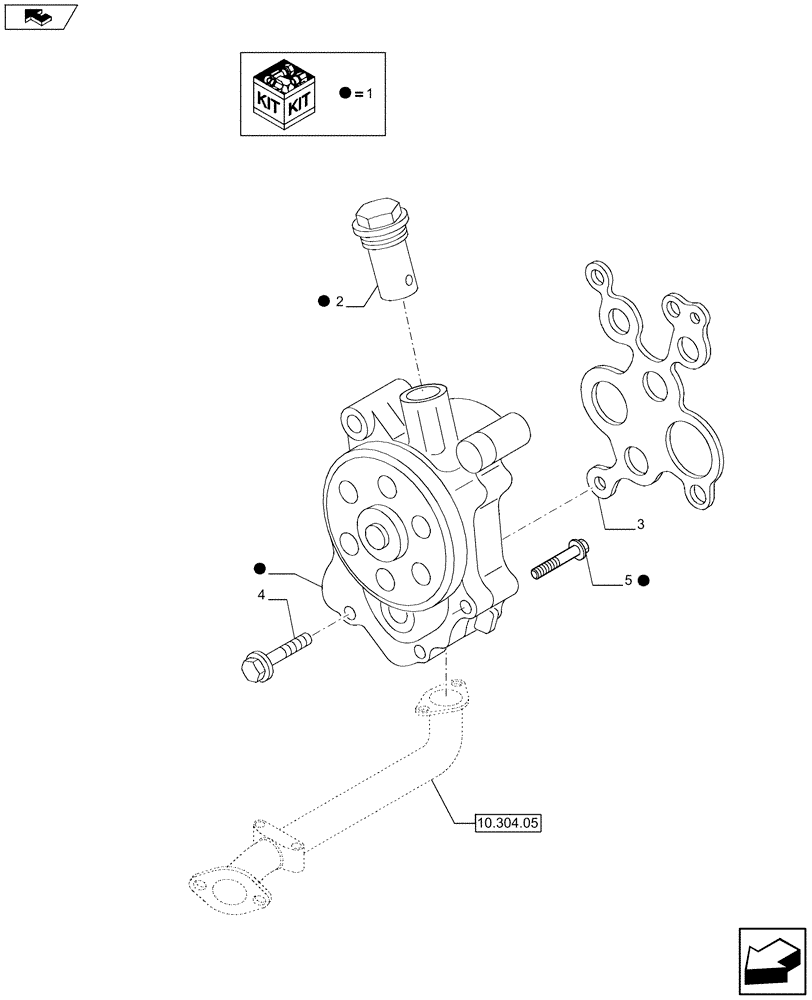

Схема запчастей Case IH F3DFA613B E004 - (10.304.01[02]) - PUMP, ENGINE OIL & RELATED PARTS (504161109) (10) - ENGINE
2
1
1
3
5
10.304.05
1
4
home
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504350713

ENGINE OIL PUMP

1шт.

2

500359679

SAFETY VALVE

1шт.

3

99452273

GASKET

1шт.

4

16592525

BOLT,M8 x 1.25 x 70mm

M8 X 70

3шт.

4

16586625

BOLT,M8 x 35mm

M8 x 35

1шт.

5

16691024

SCREW,M8 x 40mm

3шт.
