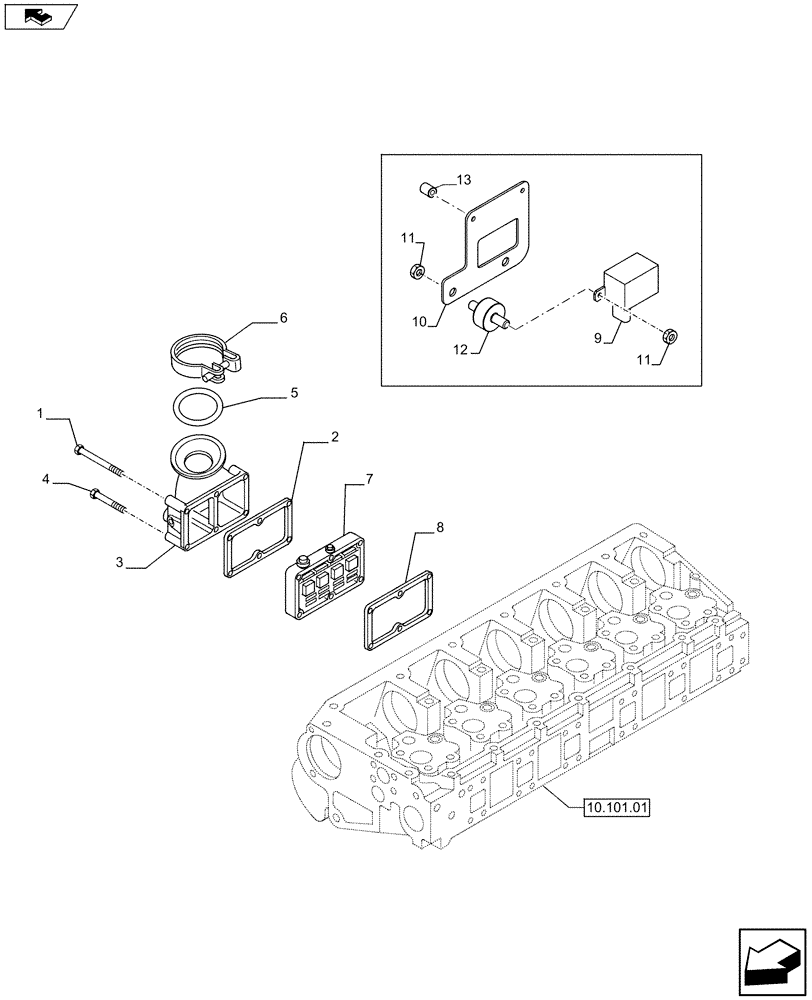

Запчасти Case IH F3DFA613B E004 (10.254.01) - AIR LINES (5801380339 - 5801379212) (10) - ENGINE

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

2шт.

1

16599325

SCREW,M10 x 150mm

M10 X 150

1шт.

2

504375264

GASKET,0.3mm Thk

1шт.

3

504074687

MANIFOLD

1шт.

4

16593125

BOLT,M10 x 100mm

M10 x 100

5шт.

5

17291281

GASKET,94.84mm ID x 3.53mm Thk

M94.84 x 3.53

1шт.

6

99435103

COLLAR CLAMP

1шт.

7

504154987

HEATER

1шт.

8

504375264

GASKET,0.3mm Thk

1шт.

9

86619908

RELAY,12V, 150A

1шт.

10

504385714

BRACKET, SUPPORTING

1шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

M6X16

4шт.

12

504090550

LUG

2шт.

13

61320836

SPACER

2шт.
