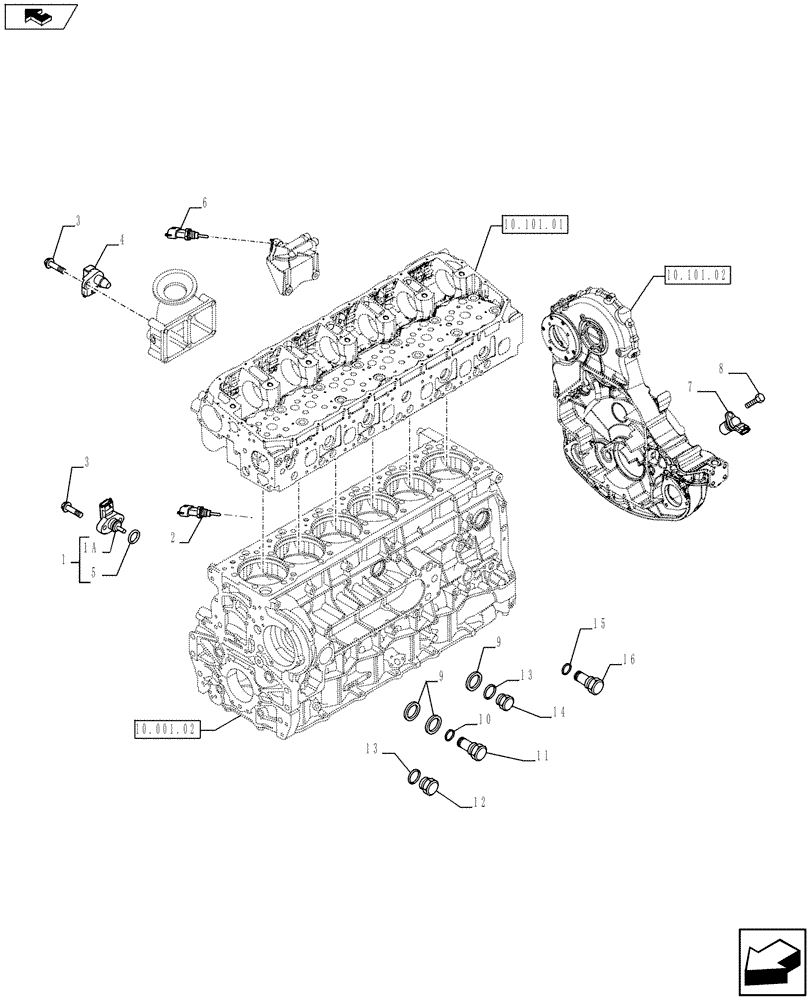

Запчасти Case IH F3DFA613B E003 (55.414.01[02]) - MOTOR SENSORS (504386710 - 504386730 - 504386725) (55) - ELECTRICAL SYSTEMS

1

504358206

ASSY Contains Ref.1A, 5

SWITCH,Pressure

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

504364902

SENSOR

1шт.

3

2853118

BOLT,Hex, M6 x 1 x 18mm

3шт.

4

504307953

SENSOR

1шт.

5

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

6

82017881

SENSOR

2шт.

7

504096645

TRANSMITTER

2шт.

8

16689024

SCREW,M16 x 12mm

M6 x 12

2шт.

9

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

4шт.

10

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

1шт.

11

504084571

PLUG

1шт.

12

10300714

PLUG,M16 x 1.5 x 14

1шт.

13

99489019

SEALING WASHER

1шт.

14

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

15

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.

16

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.
