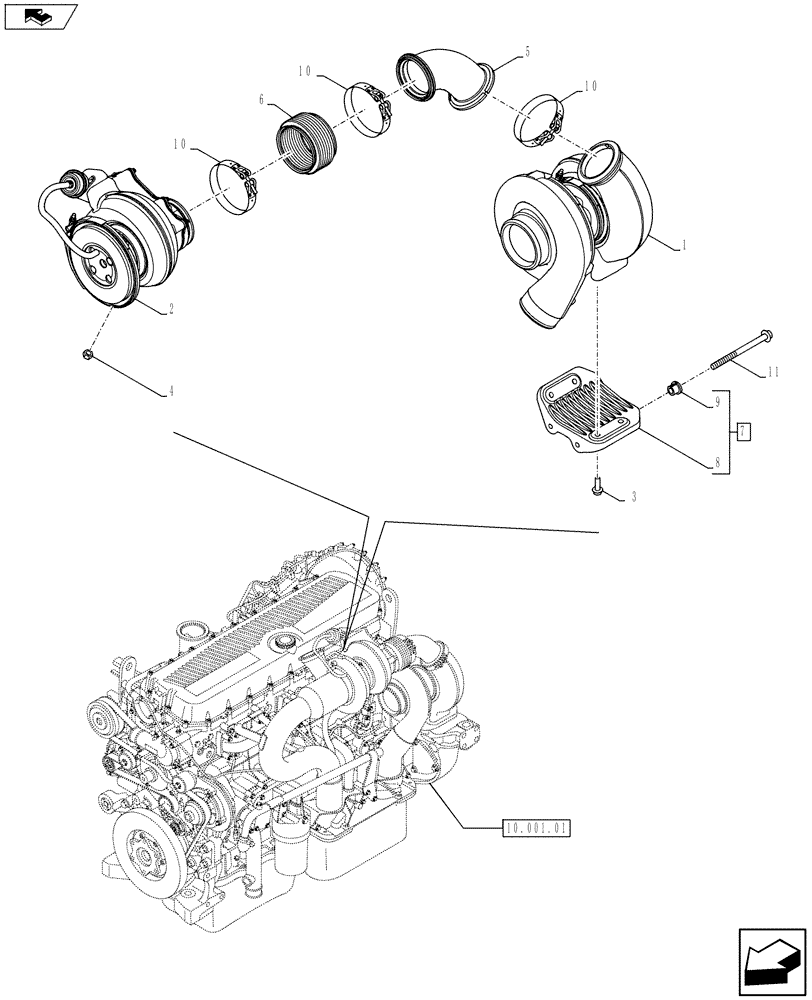

Запчасти Case IH F3DFA613B E003 (10.250.02) - TURBOCHARGER & RELATED PARTS (504386765) (10) - ENGINE

1

504388542

TURBOCHARGER

1шт.

1

504388542R

REMAN-TURBOCHARGER

Without Wastegate

1шт.

1

504388542C

CORE-TURBOCHARGER

Reutrn Number

1шт.

2

504388540

TURBOCHARGER

1шт.

2

504388540R

REMAN-TURBOCHARGER

With Wastegate

1шт.

2

504388540C

CORE-TURBOCHARGER

Return Number

1шт.

3

16675835

SCREW,M10 x 30mm

M10 x 30

4шт.

4

500300795

NUT

4шт.

5

504382338

AIR DUCT

1шт.

6

5801379286

SLEEVE

1шт.

7

NSS

NOT SOLD SEPARAT

ASSY Contains Ref.8, 9

1шт.

8

504382343

FASTENER

1шт.

9

504386944

BUSHING

1шт.

10

504384322

RETAINER COLLAR

3шт.

11

16600025

BOLT,Hex, M12 x 160mm, Cl 8.8

2шт.
