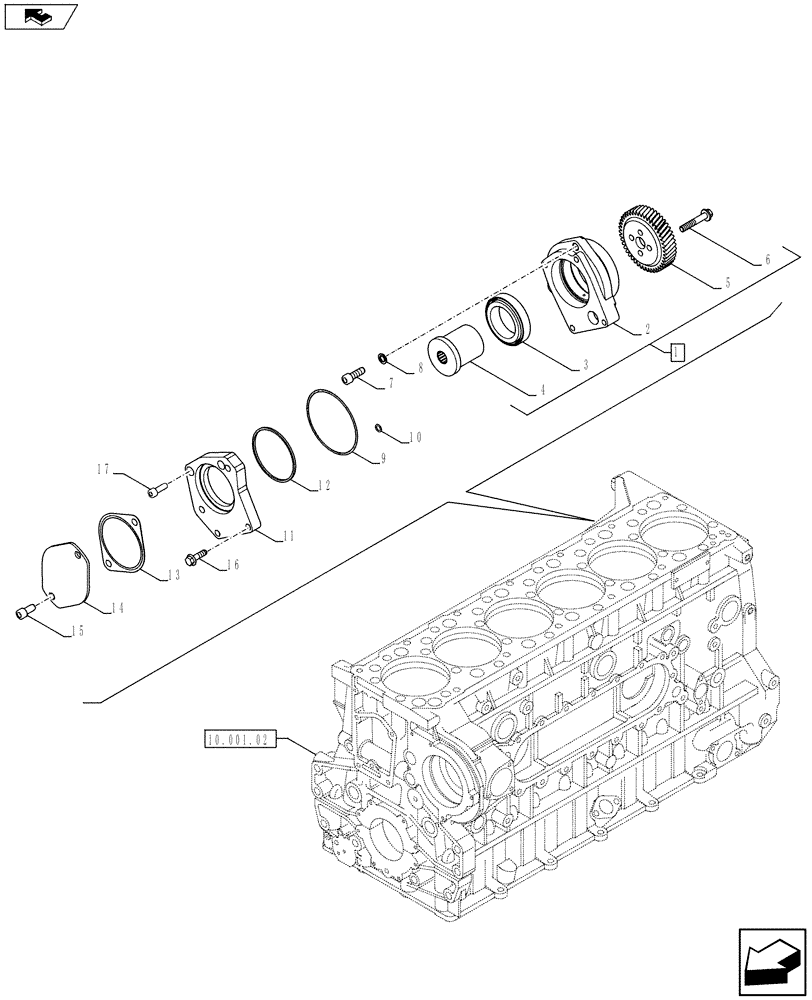

Запчасти Case IH F3DFA613A E002 (10.114.02) - BELT PULLEY DRIVE & COVER (504386855) (10) - ENGINE

1

504381312

PTO

ASSY Contains Ref.2, 3, 4, 5, 6

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

7164487

BEARING

2шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

504020648

GEAR

1шт.

6

16675835

SCREW,M10 x 30mm

4шт.

7

1103790

SCREW

3шт.

8

17095224

WASHER

M20

3шт.

9

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

D = 126.59 x 3.53 mm

1шт.

10

14456881

O-RING,0.362" ID x 0.103" Width

D = 9.19 mm

1шт.

11

504061368

SPACER

1шт.

12

504042516

O-RING

1шт.

13

4895329

GASKET

1шт.

14

2852175

COVER

1шт.

15

16692225

BOLT

M10 x 30

2шт.

16

16693724

SCREW,M12

2шт.

17

16587325

SCREW,Hex, M10 x 35mm

M10 x 35

2шт.
