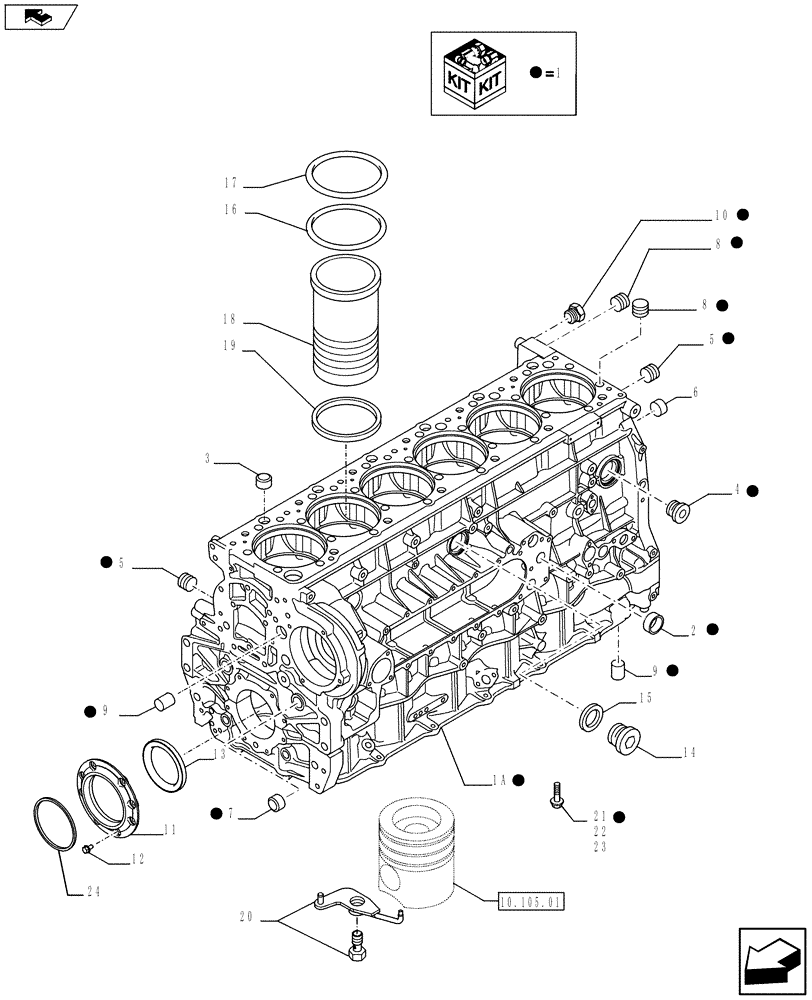

Запчасти Case IH F3DFA613A E001 (10.001.02) - CYLINDER BLOCK & RELATED PARTS (504386610/615/630/640) (10) - ENGINE

1

504387134

CYLINDER BLOCK

ASSY Contains Ref.1A, 2, 4 - 10, 21

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

16991370

PLUG

2шт.

3

98472271

PLUG

1шт.

4

504120669

PLUG

1шт.

5

504051238

PLUG,Threaded, 3/8" Dia

3шт.

6

500368916

DOWEL

1шт.

7

16990870

PLUG

3шт.

8

504138062

PLUG

3шт.

9

99467554

DOWEL

4шт.

10

99433597

SCREW

3шт.

10

504051237

PLUG

1шт.

11

504387089

COVER

1шт.

12

16586225

BOLT,M8 x 16mm

8шт.

13

17292781

O-RING

1шт.

14

4665029

PLUG

1шт.

15

99469382

SEAL

1шт.

16

99455400

SEALING RING

SEALRING

6шт.

17

99455401

SEALING RING

SEALRING

12шт.

18

504323994

LINER, ENGINE CYLIND

6шт.

19

99448193

SHIM,0.08mm Thk

6шт.

19

99448192

SHIM,0.10mm Thk

6шт.

19

99448190

SHIM,0.12mm Thk

6шт.

19

500378983

SHIM,0.14mm Thk

6шт.

20

504314362

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

6шт.

21

504108192

SCREW,Flng, M18 x 2 x 196mm

14шт.

22

99432869

SCREW

25шт.

23

99433863

SCREW

1шт.

24

40102683

GASKET

1шт.
