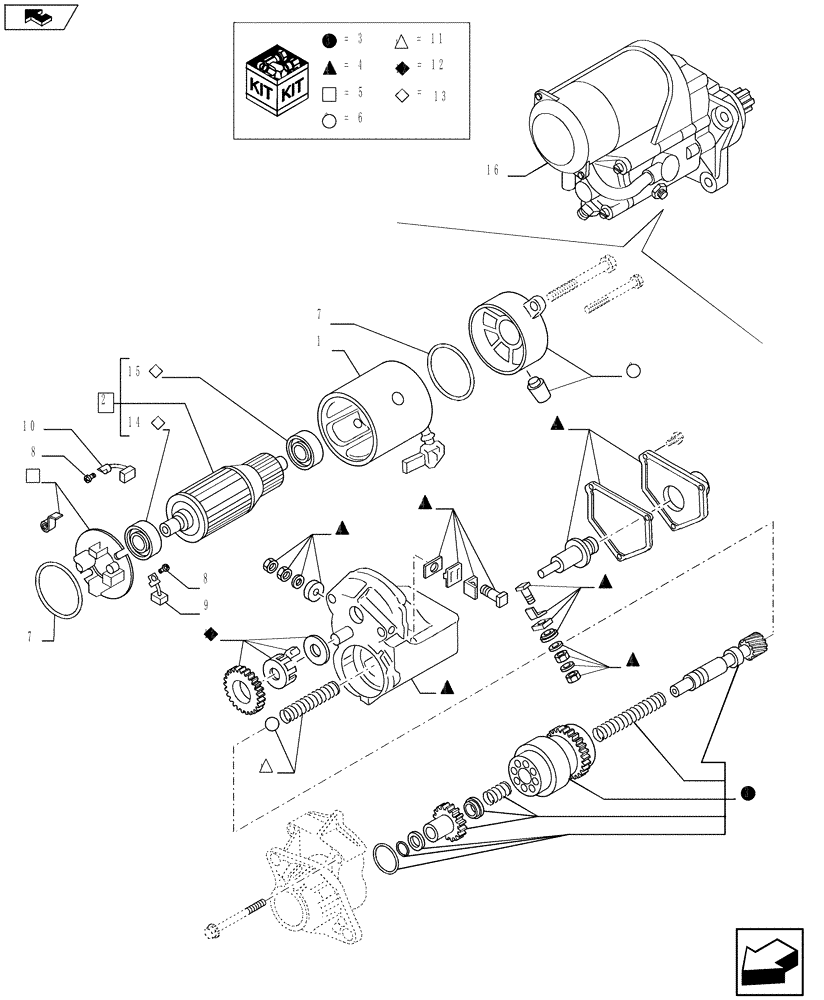

Запчасти Case IH F3DFA613A E001 (55.201.01 01) - STARTER MOTOR BREAKDOWN (504106753) (55) - ELECTRICAL SYSTEMS

504106753R

REMAN-STARTER

Quadtrac 600 w/Brake & T2 Cursor 13 Engine

1шт.

504106753C

CORE-STARTER

Return Number

1шт.

1

42471438

STATOR

Winding

1шт.

2

42471439

ARMATURE

Kit

1шт.

3

42471440

KIT, STARTER MTR REP

1шт.

4

42471441

KIT, STARTER MTR REP

1шт.

5

42471442

KIT, STARTER MTR REP

1шт.

6

42471443

HOUSING

1шт.

7

42471444

O-RING

2шт.

8

42471445

SCREW

4шт.

9

42471446

BRUSH, COMMUTATOR

BRUSH

2шт.

10

42471447

BRUSH, COMMUTATOR

BRUSH

2шт.

11

42471378

KIT, STARTER MTR REP

1шт.

12

42471450

KIT, STARTER MTR REP

1шт.

13

42546503

BEARING

1шт.

14

42471541

BEARING

1шт.

15

42546522

BEARING

1шт.

16

504106753

STARTER MOTOR

1шт.

504106753R

REMAN-STARTER

Quadtrac® 600, Steiger 600, Both w/Tier 2 Cursor 13 Engine w/Brake

1шт.

504106753C

CORE-STARTER

Return Number

1шт.
