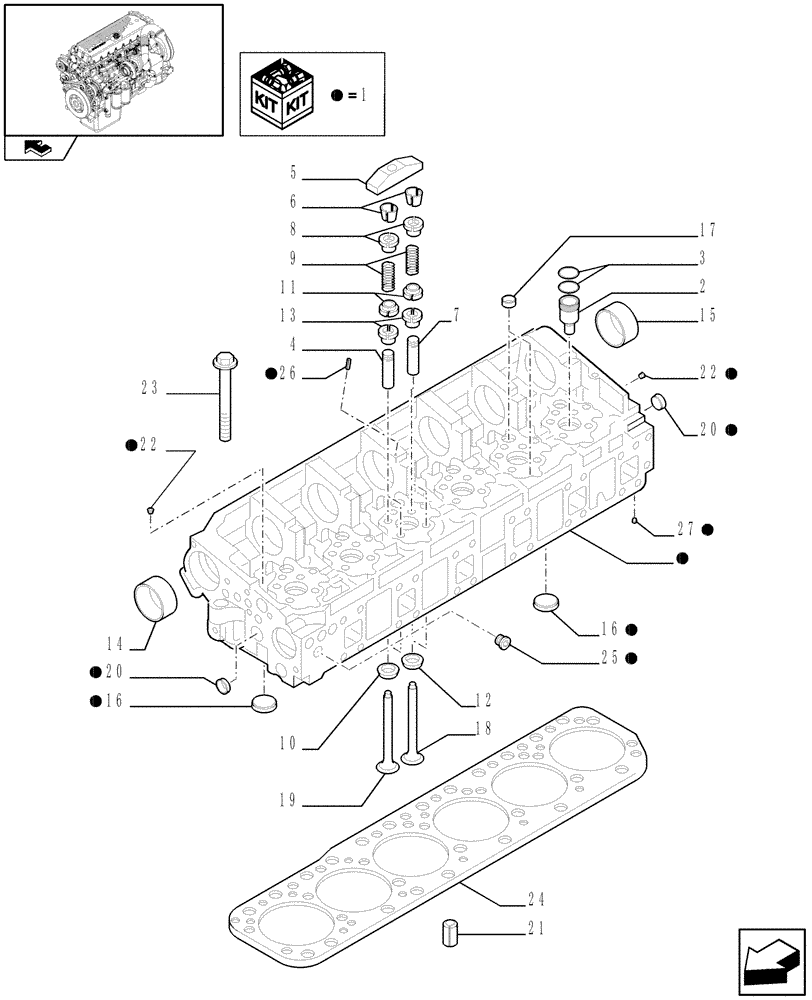

Запчасти Case IH F3CE0684F E001 (10.101.01) - CYLINDER HEAD & RELATED PARTS (504053191 - 504053193 - 504053195) (01) - ENGINE

1

504021866

CYLINDER HEAD

ASSY

1шт.

1

504021866R

REMAN-CYLINDER HEAD

F3CE0684F*E001 ENGINE - 504377661 - 84218816 Bare Head

1шт.

1

504021866C

CORE-CYLINDER HEAD

Return Number

1шт.

1

47507107R

REMAN-CYLINDER HEAD

Engine Model F3CE0684F*E001 with Engine P/N's 504377661 & 84218816, Complete Head For Bare Head P/N's 504021866 and 504021866R

1шт.

1

47507107C

CORE-CYLINDER HEAD

Return Number

1шт.

2

99476929

CASE

6шт.

3

14454081

O-RING,1.051" ID x 0.07" Width

D = 26.7 x 1.7 mm

12шт.

4

500390993

INTAKE VALVE GUIDE

STD

12шт.

4

500390864

OVERSIZE INLET VALVE

+0,2

12шт.

4

500390866

OVERSIZE INLET VALVE

+0,4

12шт.

5

504002605

CROSSRAIL

12шт.

6

14196370

ROCKER ARM COTTER

D = 9,82 mm

48шт.

7

500390994

EXHAUST VALVE GUIDE

STD

12шт.

7

500390860

VALVE, EXHAUST, OVER

+0,2

12шт.

7

500390861

VALVE, EXHAUST, OVER

+0,4

12шт.

8

98473050

COTTERS PLATE

24шт.

9

504100000

SPRING

24шт.

10

99450511

VALVE SEAT

STD

12шт.

10

504020517

VALVE SEAT

+0,2

12шт.

11

504107641

CUP

24шт.

12

99450512

VALVE SEAT

STD

12шт.

12

504020515

VALVE SEAT

+0,2

12шт.

13

40101874

SEALING RING

12шт.

14

504078222

BUSHING

6шт.

15

504078223

BUSHING

1шт.

16

16991370

PLUG

D = 45 mm

2шт.

17

16990870

PLUG

D = 28 mm

13шт.

18

504080352

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

19

500355778

STD INLET VALVE

STD ENGINE INLET VALVE

12шт.

20

16990570

PLUG

D = 20 mm

12шт.

21

2852985

DOWEL

D = 10 mm

2шт.

22

504138062

PLUG

2шт.

23

98495527

BOLT

20шт.

23

98495528

SCREW,Shldr, Hex Flg, M18 x 2 x 175mm

6шт.

24

504007514

GASKET

1шт.

25

504182706

PLUG

1шт.

26

17255674

ROLL PIN

D = 5 mm

1шт.

27

504138060

PLUG

1шт.
