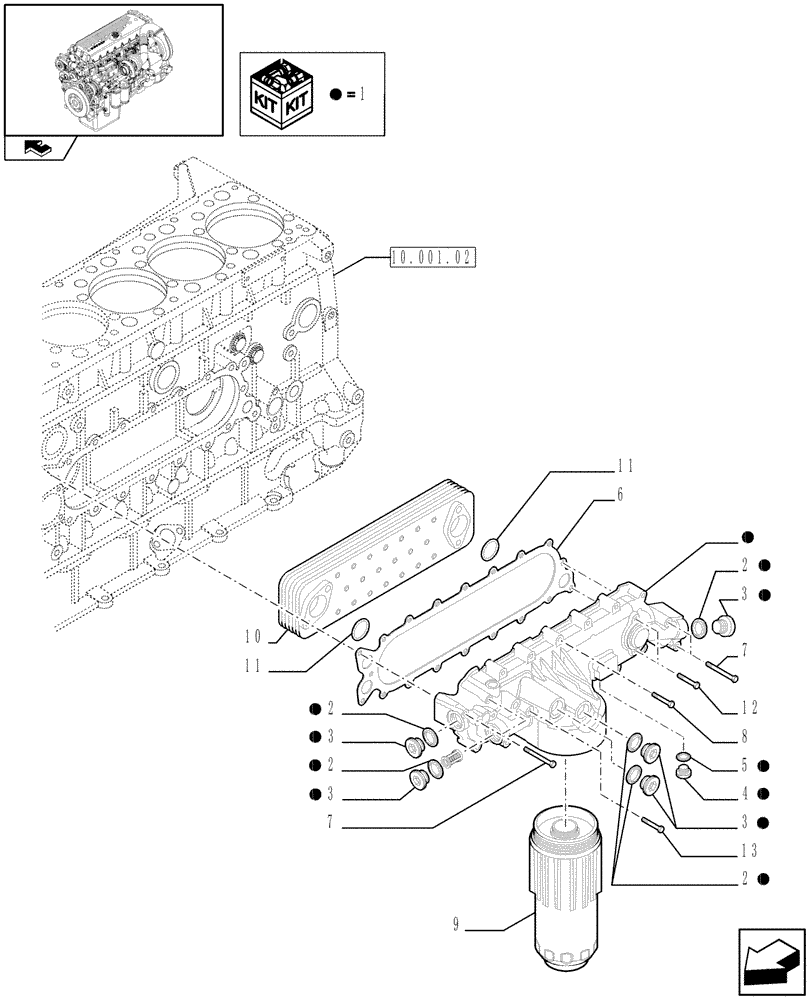

Запчасти Case IH F3CE0684F E001 (10.408.01) - HEAT EXCHANGER (504261532 - 504236009 - 504261986) (01) - ENGINE

1

504236007

HEAT EXCHANGER

ASSY

1шт.

2

99432291

GASKET,28mm ID

D = 28 mm

5шт.

3

10278301

PLUG,M28 x 1.5 x 11, Brass

M28 x 1,5

5шт.

4

10300714

PLUG,M16 x 1.5 x 14

M16 x 1,5

1шт.

5

99489019

SEALING WASHER

D = 16 x 24 mm SP=1,5 mm

1шт.

6

504045796

GASKET

1шт.

7

16592625

SCREW,M8 x 80mm

M8 x 80

4шт.

8

16586925

BOLT,M8 x 50mm

M8 x 50

14шт.

9

504213800

ENGINE OIL FILTER

1шт.

10

504221052

OIL COOLER

1шт.

11

14459081

O-RING,1.737" ID x 0.103" Width

D = 44,12 mm SP=2,62 mm

2шт.

12

16592625

SCREW,M8 x 80mm

M8 x 80

2шт.

13

16586525

BOLT,Hex, M8 x 30mm, Cl 8.8

M8 x 30

2шт.
