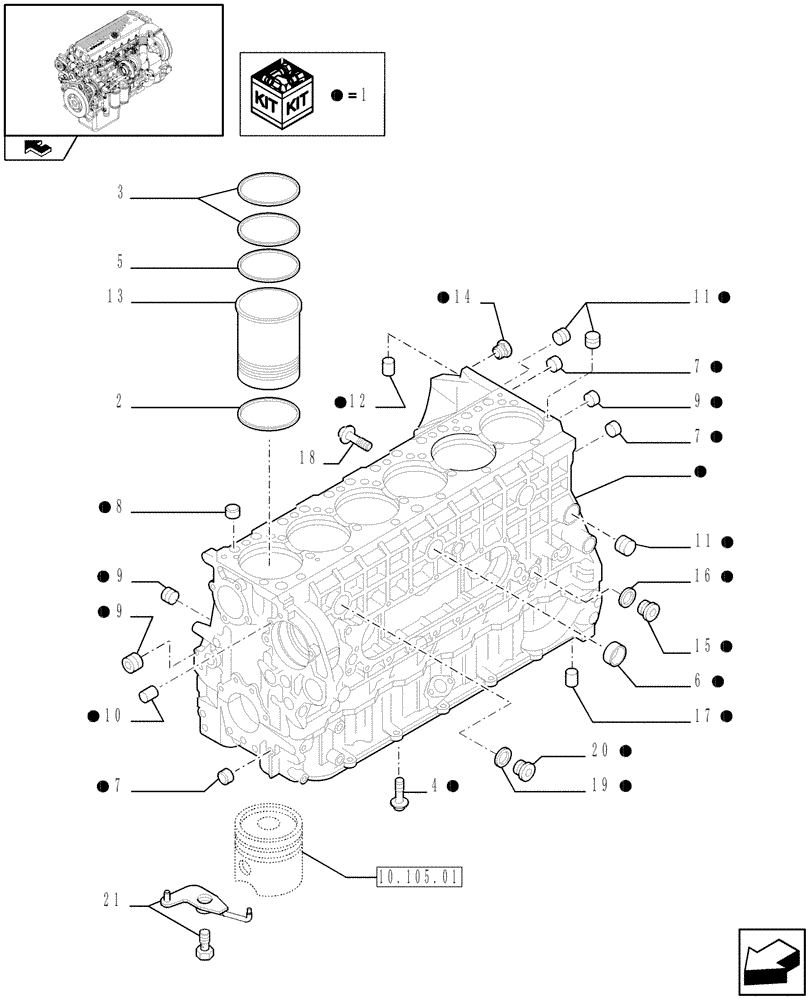

Запчасти Case IH F3CE0684F E001 (10.001.02) - CYLINDER BLOCK & RELATED PARTS (504244984 - 504242485) (01) - ENGINE

1

504244700

CYLINDER BLOCK

ASSY

1шт.

2

99448192

SHIM,0.10mm Thk

6шт.

2

99448190

SHIM,0.12mm Thk

6шт.

2

500378983

SHIM,0.14mm Thk

6шт.

2

99448193

SHIM,0.08mm Thk

6шт.

3

99455401

SEALING RING

SEALRING D = 152 mm

12шт.

4

504108192

SCREW,Flng, M18 x 2 x 196mm

14шт.

4

99432869

SCREW

25шт.

4

99433863

SCREW

1шт.

5

99455400

SEALING RING

SEALRING D = 152 mm

6шт.

6

16991370

PLUG

D = 45 mm

2шт.

7

16990870

PLUG

D = 28 mm

2шт.

8

16990670

PLUG,Lock, 22mm Dia

D = 22 mm

6шт.

9

98474481

PLUG

3шт.

10

504120669

PLUG

M24 x 1,5

1шт.

11

99472271

1шт.

12

500368916

DOWEL

1шт.

13

504094025

LINER, ENGINE CYLIND

6шт.

14

99433597

SCREW

3шт.

15

10300714

PLUG,M16 x 1.5 x 14

M16 x 1.5

1шт.

16

99489019

SEALING WASHER

D = 16 x 24 mm

1шт.

17

99467554

DOWEL

D = 14 mm

4шт.

18

504138062

PLUG

2шт.

19

4893207

SEALING WASHER,15.5mm ID x 26mm OD x 1.5mm Thk

D = 18 x 26 mm SP=1,5 mm

1шт.

20

16992515

PLUG

M18 x 1.5

1шт.

21

504101758

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

6шт.
