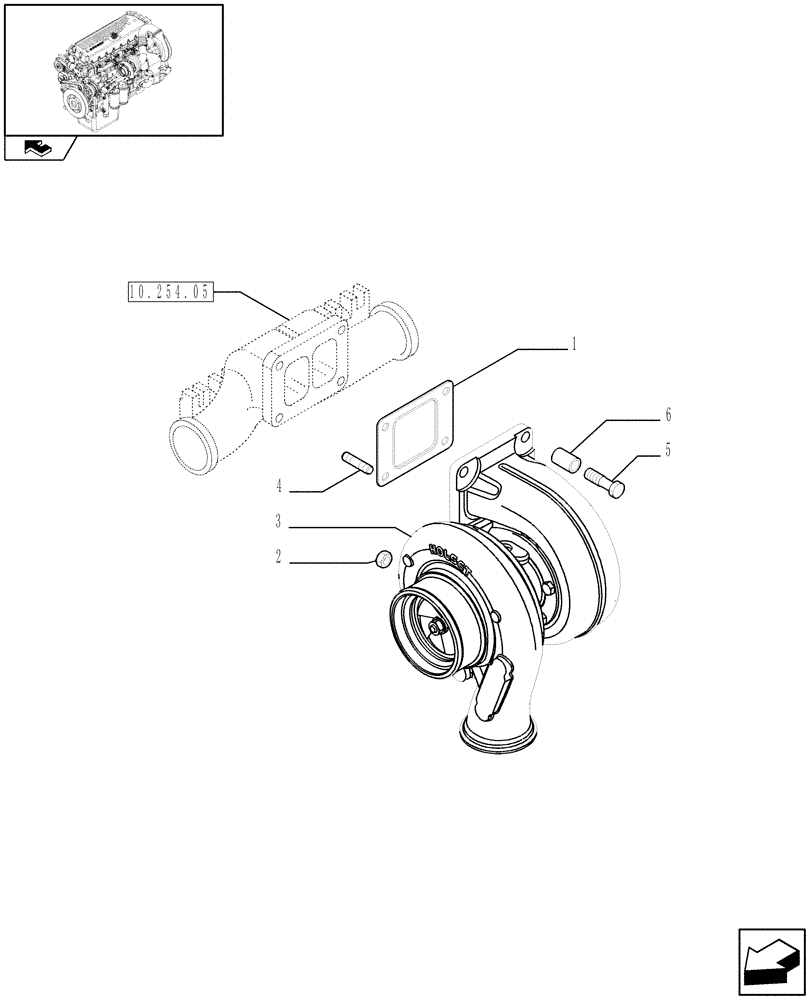

Запчасти Case IH F3CE0684F E001 (10.250.02) - TURBOCHARGER & RELATED PARTS (504246987) (01) - ENGINE

1

98451118

GASKET

1шт.

2

500300795

NUT

2шт.

3

504246942

TURBOCHARGER

1шт.

504171476R

REMAN-TURBOCHARGER

Model F3CE0684F*E001 Engine, P/N's 504377661 & 84218816, Reman For New P/N's 504246942 & 504171476,

1шт.

504171476C

CORE-TURBOCHARGER

Return Number

1шт.

4

504137528

STUD

M10 x 1.5 x 45mm

2шт.

5

504078465

FLANGE BOLT,M10 x 1.5 x 70mm

2шт.

6

504301056

SPACER

2шт.
