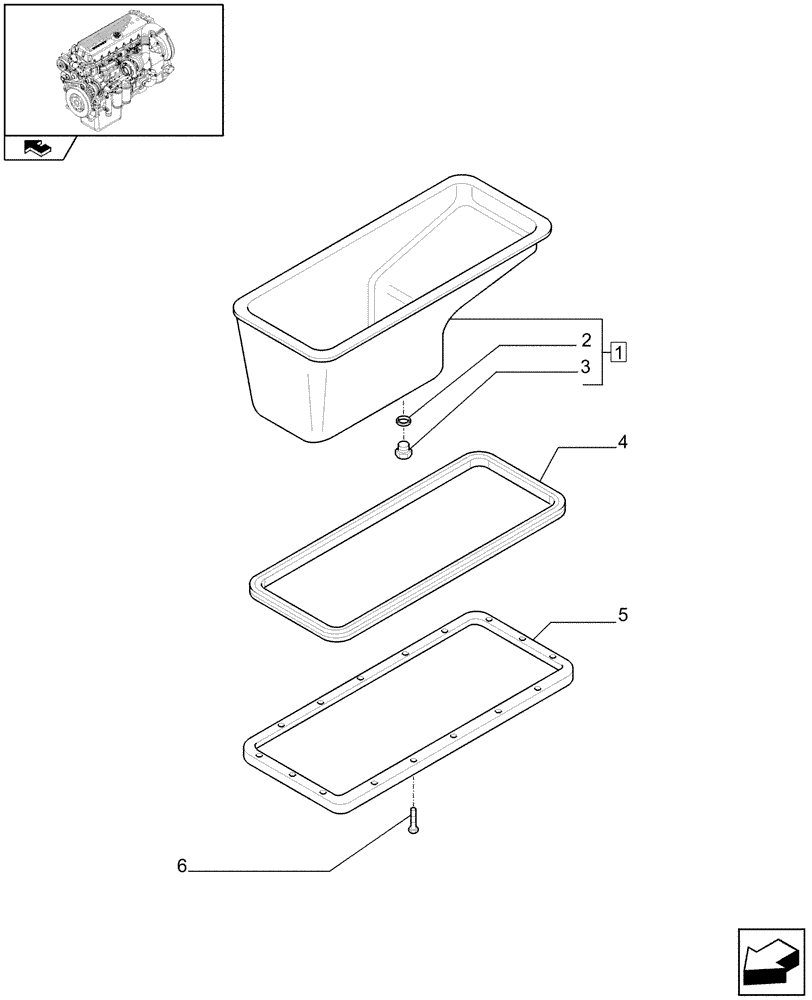

Запчасти Case IH F3CE0684F E001 (10.102.01) - OIL SUMP & RELATED PARTS (504052952) (01) - ENGINE

1

504388083

ENGINE OIL PAN

ASSY, Incl 2, 3

1шт.

2

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D = 22 mm

1шт.

3

10305171

PLUG,M22 x 1.5 x 21

M22 x 1.5

1шт.

4

5801464913

GASKET

1шт.

5

504276421

SPACER

M10 x 45

1шт.

6

16587525

BOLT,M10 x 45mm

M10 x 45

16шт.
