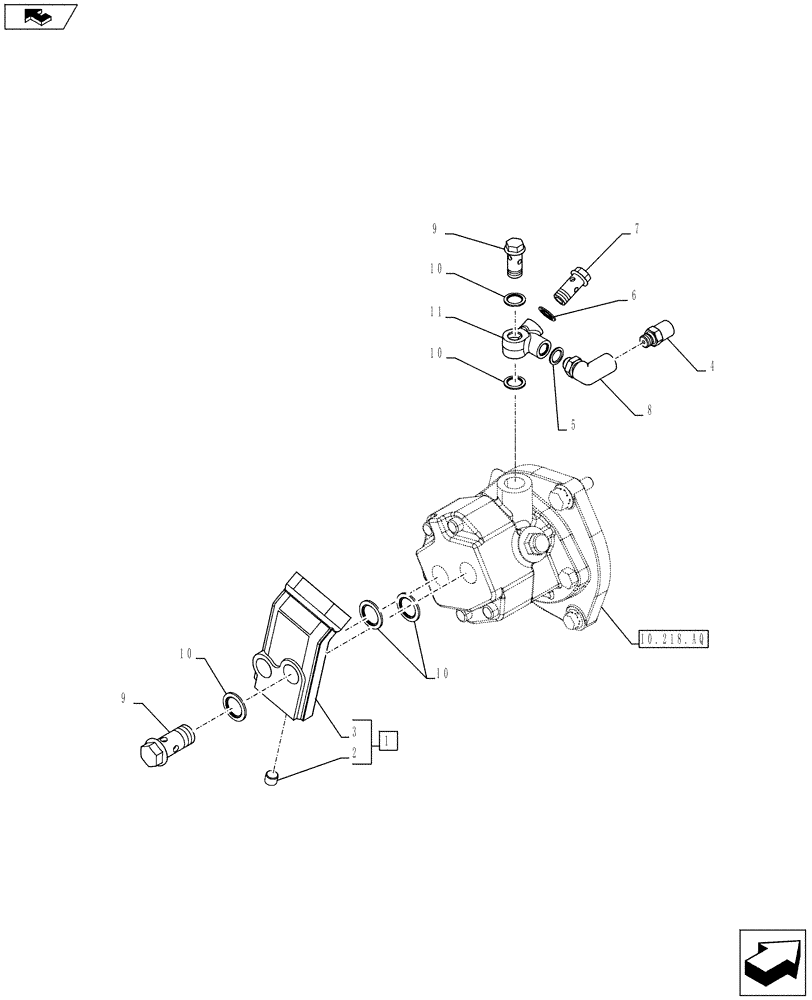

Запчасти Case IH F3CE0684E E920 (10.210.AF[02]) - FUEL LINE (10) - ENGINE

1

500314313

CONNECTING BLOCK

ASSY, Incl 2, 3

1шт.

2

504051237

PLUG

2шт.

3

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

4

500328251

VALVE PRESSURE RELIE

1шт.

5

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=12 mm

1шт.

6

99489019

SEALING WASHER

D=16 x 24 x 1.5 mm

1шт.

7

504081274

HYD CONNECTOR

M16 x 1.5 - M18 x 1.5

1шт.

8

500350162

ELBOW

1шт.

9

504081282

HYD CONNECTOR

M16 x 1.5

3шт.

10

98474309

GASKET,16mm ID x 24mm OD x 1.9mm Thk

D=16 x 24 x 1.9 mm

6шт.

11

500348306

ELBOW

1шт.
